1743284 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

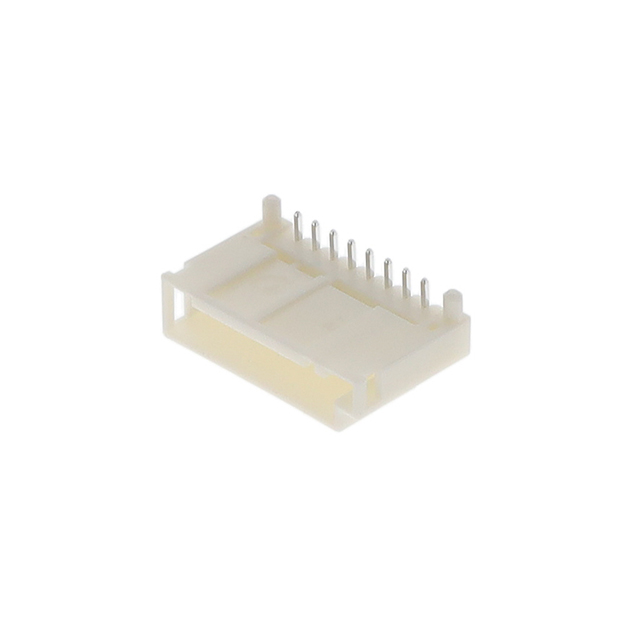

MQS HDR 8P ASSY(H-TYPE)
| Part | Contact Finish - Post | Features | Connector Type | Contact Type | Number of Positions | Material Flammability Rating | Contact Shape | Fastening Type | Termination | Insulation Height [z] | Insulation Height [z] | Shrouding | Contact Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Insulation Color | Number of Rows | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Guide Pin | Header | Male Pin | 8 | UL94 V-0 | Circular | Push-Pull | Solder | 0.228 " | 5.8 mm | Shrouded - 4 Wall | Copper Alloy | All | 0.1 " | 2.54 mm | 0.11 in | 2.8 mm | Polybutylene Terephthalate (PBT) Glass Filled | Natural | 1 | Through Hole |
 TE Connectivity AMP Connectors | Tin | Guide Pin | Header | Male Pin | 8 | UL94 V-0 | Circular | Push-Pull | Solder | 0.228 " | 5.8 mm | Shrouded - 4 Wall | Copper Alloy | All | 0.1 " | 2.54 mm | 0.11 in | 2.8 mm | Polybutylene Terephthalate (PBT) Glass Filled | Black | 1 | Through Hole |
