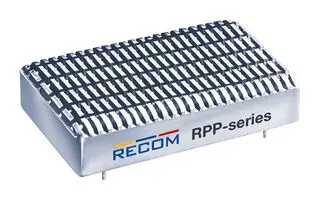

RPP40-2405SW Series
Isolated DC/DC Converters - Through Hole 40W DC/DC-Converter 2"x1.2" 3kV reg 4:1
Manufacturer: Recom Power
Catalog
Isolated DC/DC Converters - Through Hole 40W DC/DC-Converter 2"x1.2" 3kV reg 4:1
Beta
⌘K
Isolated DC/DC Converters - Through Hole 40W DC/DC-Converter 2"x1.2" 3kV reg 4:1
Isolated DC/DC Converters - Through Hole 40W DC/DC-Converter 2"x1.2" 3kV reg 4:1
Isolated DC/DC Converters - Through Hole 40W DC/DC-Converter 2"x1.2" 3kV reg 4:1
| Part | Control Features | Package / Case | Voltage - Input (Min) [Min] | Type | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Power (Watts) | Applications | Mounting Type | Voltage - Isolation | Current - Output (Max) [Max] | Number of Outputs | Efficiency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Active High Enable | 6-DIP Module | 9 V | Isolated Module | 5 V | -45 °C | 66 °C | 50.8 mm | 1.2 in | 0.46 in | 11.7 mm | 2 in | 30.5 mm | 36 V | 40 W | ITE (Commercial) | Through Hole | 3000 V | 8 A | 1 | 88 % | OCP OTP OVP Remote On/Off SCP UVLO |
