1393292 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

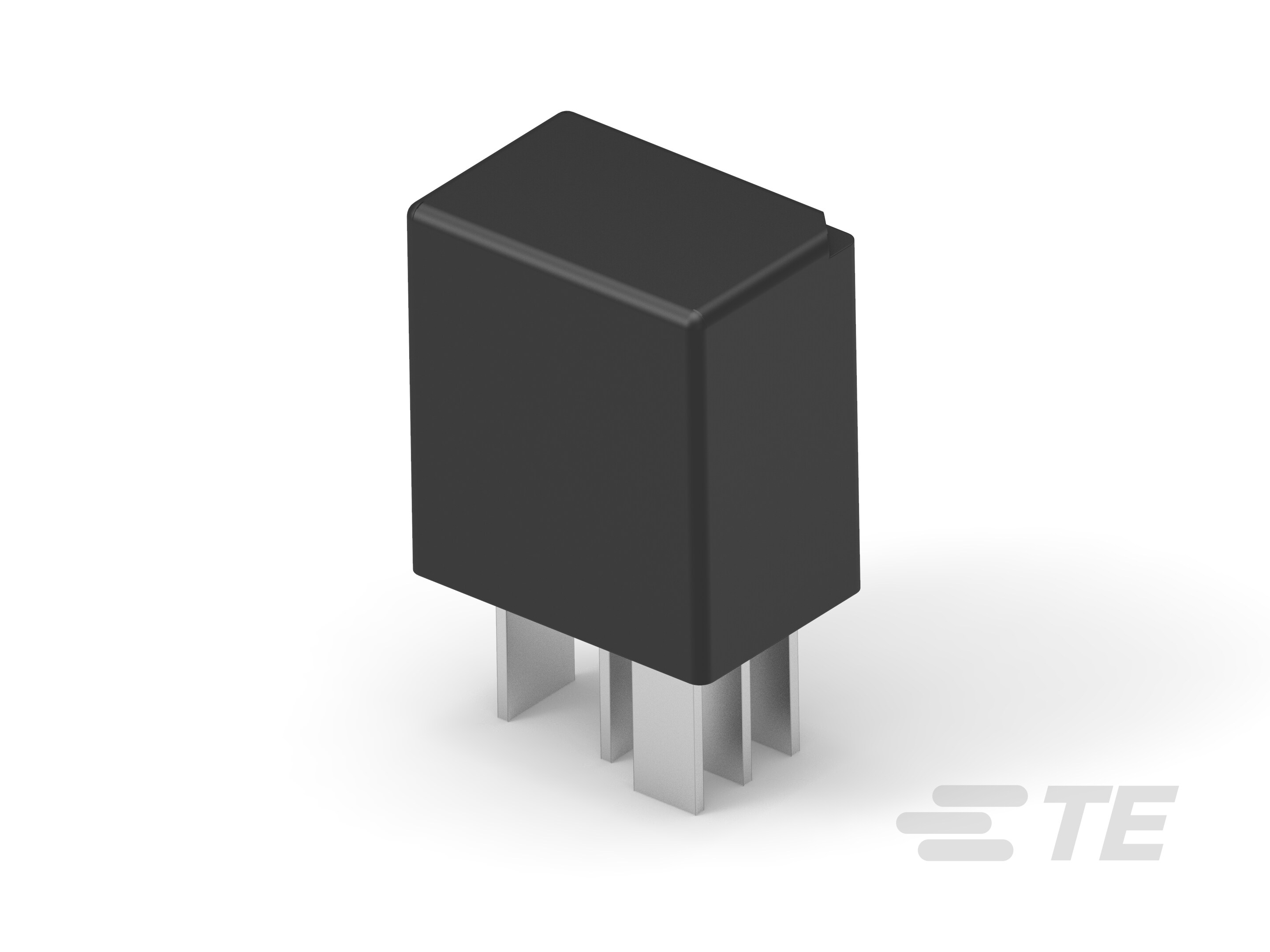

AUTOMOTIVE RELAY, 24 VDC, 30 A, SPDT, SOCKET, QUICK CONNECT, MICRO RELAY A SERIES
| Part | Relay Type | Mounting Type | Must Release Voltage | Contact Form | Coil Current | Termination Style | Termination Style | Operate Time | Release Time | Coil Type | Switching Voltage [Max] | Load - Max Switching [Max] | Coil Voltage | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Features | Contact Rating (Current) | Coil Power | Coil Resistance | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | Socketable | 3.6 VDC | SPDT (1 Form C) | 55.8 mA | Plug In Quick Connect | 0.187 in 0.25 in | 6 ms | 3 ms | Non Latching | 32 VDC | 960 W | 24 VDC | Silver Alloy | 125 °C | -40 C | 14.4 VDC | Diode | 25 A | |||
TE Connectivity AMP Connectors | Socketable | 3.6 VDC | SPDT (1 Form C) | Plug In Quick Connect | Non Latching | 24 VDC | Silver Alloy | 125 °C | -40 C | 14.4 VDC | Diode | 30 A | 1.34 W | 430 Ohms | 24 VDC |
