NL-SW-LTE Series

Manufacturer: Airgain

Catalog

RF TXRX MOD CELL U.FL TH

Part	Serial Interfaces	Current - Receiving	RF Family/Standard	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Frequency	Frequency	Current - Transmitting	Antenna Type	Protocol	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Data Rate	Power - Output	Sensitivity
Airgain NL-SW-LTE-GELS3-E	UART USB	1.5 A	Cellular	85 °C	-30 °C	Through Hole	1.7GHz 700MHz	1.7 GHz 700 MHz	1.5 A	Antenna Not Included U.FL	4G LTE CAT-1 (Verizon)	5.5 V	3 V	20-DIP Module
Airgain NL-SW-LTE-TC4EU	UART USB		Cellular	85 °C	-40 °C	Through Hole	1.8GHz 2.1GHz 2.6GHz 800MHz 900MHz	1.8 GHz 2.1 GHz 2.6 GHz 800 MHz 900 MHz		Antenna Not Included U.FL	2G Fallback 3G/2G Fallback 4G LTE CAT-4 (Europe) 4G LTE CAT-4 (Europe) 3G	4.3 V	3.5 V	20-DIP Module	150 MHz
Airgain NL-SW-LTE-TC4APG	UART USB		Cellular Navigation	85 °C	-40 °C	Through Hole	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz		Antenna Not Included U.FL	BeiDou Galileo GLONASS GPS HSPA+ LTE	4.2 V	3.4 V	20-DIP Module	150 MHz
Airgain NL-SW-LTE-S7588-V-B	UART USB		Cellular	85 °C	-40 °C	Through Hole	1.7GHz 1.9GHz 700MHz 850MHz	1.7 GHz 1.9 GHz 700 MHz 850 MHz		Antenna Not Included U.FL	3G Fallback 4G LTE CAT-4 (Verizon)	5.5 V	3 V	20-DIP Module	150 MHz
Airgain NL-SW-LTE-S7588-V-B	UART USB		Cellular	85 °C	-40 °C	Through Hole	1.7GHz 1.9GHz 700MHz 850MHz	1.7 GHz 1.9 GHz 700 MHz 850 MHz		Antenna Not Included U.FL	3G Fallback 4G LTE CAT-4 (Verizon)	5.5 V	3 V	20-DIP Module	150 MHz
Airgain NL-SW-LTE-TC4APG	UART USB		Cellular Navigation	85 °C	-40 °C	Through Hole	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz		Antenna Not Included U.FL	BeiDou Galileo GLONASS GPS HSPA+ LTE	4.2 V	3.4 V	20-DIP Module	150 MHz

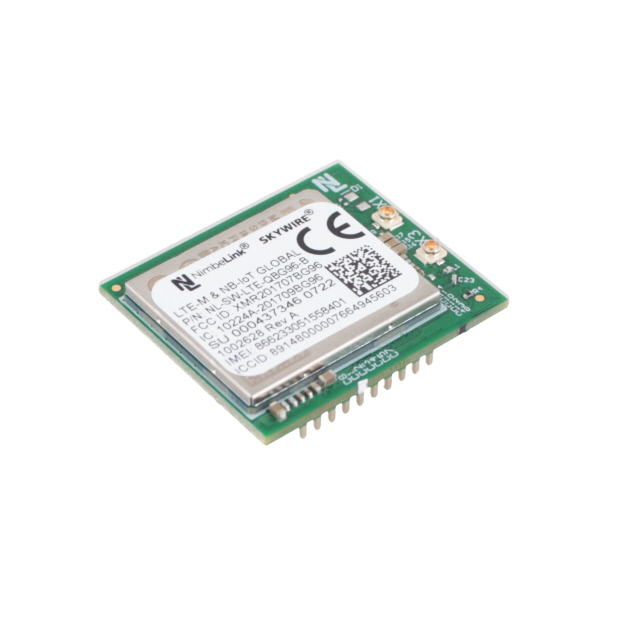

Airgain NL-SW-LTE-QBG96-B	UART USB		Cellular Navigation	85 °C	-40 °C	Through Hole	1.7GHz 1.8GHz 1.9GHz 2.1GHz 700MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 850 MHz 900 MHz		Antenna Not Included U.FL	2G Fallback 4G LTE CAT M1 NB-IoT (Global)	4.3 V	3.4 V	20-DIP Module	300 kbps

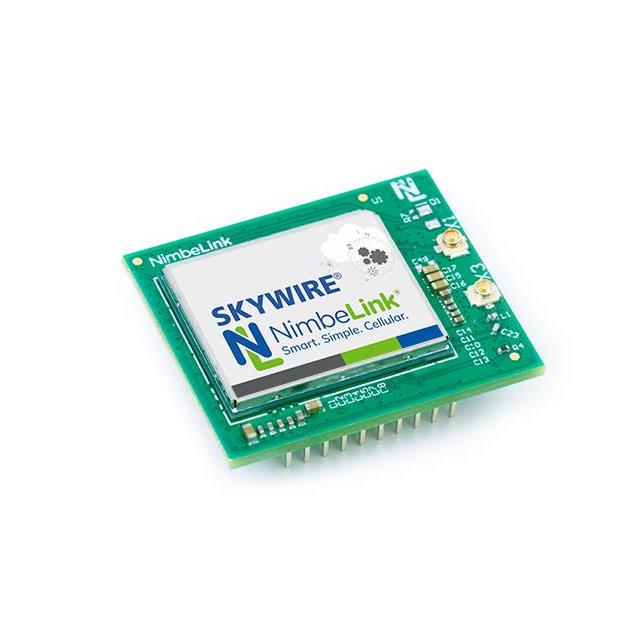

Airgain NL-SW-LTE-QBG95	USB		Cellular	85 °C	-40 °C	Through Hole	1.8GHz 1.9GHz 850MHz 900MHz	1.8 GHz 1.9 GHz 850 MHz 900 MHz		Antenna Not Included U.FL	4G LTE CAT NB-IoT	4.8 V	3.4 V	Module	375 kbps	20 dBm	-115 dBm
Airgain NL-SW-LTE-QBG96-B	UART USB		Cellular Navigation	85 °C	-40 °C	Through Hole	1.7GHz 1.8GHz 1.9GHz 2.1GHz 700MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 850 MHz 900 MHz		Antenna Not Included U.FL	2G Fallback 4G LTE CAT M1 NB-IoT (Global)	4.3 V	3.4 V	20-DIP Module	300 kbps
Airgain NL-SW-LTE-GELS3-E	UART USB	1.5 A	Cellular	85 °C	-30 °C	Through Hole	1.7GHz 700MHz	1.7 GHz 700 MHz	1.5 A	Antenna Not Included U.FL	4G LTE CAT-1 (Verizon)	5.5 V	3 V	20-DIP Module
