8919-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

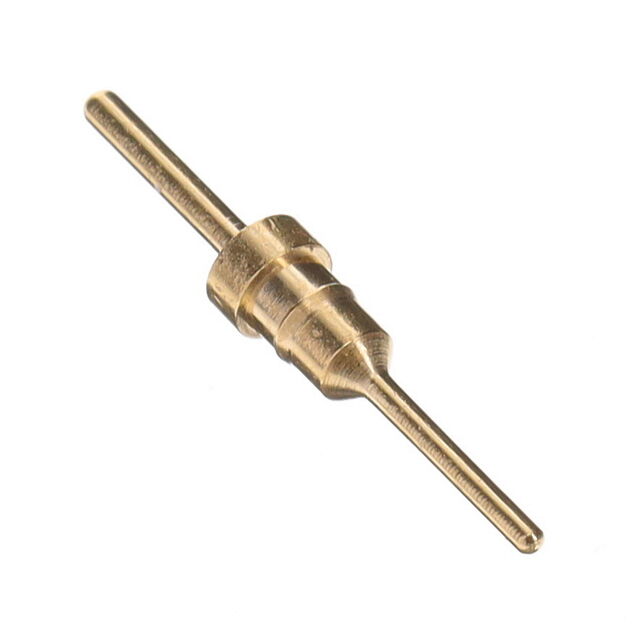

CONN PC PIN
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Termination | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Length - Overall | Length - Overall | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.45 mm | 0.057 in | 0.019 in | 0.48 mm | Wire | Press-Fit | Gold | 0.245 in | 6.22 mm | 0.25 Ám | 10 Áin | 4.19 mm | 0.165 " | 0.071 in | 1.8 mm | PC Pin | 11.18 mm | 0.44 in | Non-Insulated | 0.024 in | 0.61 mm | Brass Alloy | Through Hole |
 Mill-Max Manufacturing Corp. | 1.45 mm | 0.057 in | 0.019 in | 0.48 mm | Wire | Press-Fit | Tin | 0.245 in | 6.22 mm | 5.08 Ám | 200 Áin | 4.19 mm | 0.165 " | 0.071 in | 1.8 mm | PC Pin | 11.18 mm | 0.44 in | Non-Insulated | 0.024 in | 0.61 mm | Brass Alloy | Through Hole |
Mill-Max Manufacturing Corp. | 1.45 mm | 0.057 in | 0.019 in | 0.48 mm | Wire | Press-Fit | Tin-Lead | 0.245 in | 6.22 mm | 5.08 Ám | 200 Áin | 4.19 mm | 0.165 " | 0.071 in | 1.8 mm | PC Pin | 11.18 mm | 0.44 in | Non-Insulated | 0.024 in | 0.61 mm | Brass Alloy | Through Hole |
