ERA.1Y Series

Manufacturer: LEMO

Catalog

CONN RCPT MALE 1P GOLD SLDR CUP

Part	Shell Finish	Features	Shell Material	Color	Mounting Feature	Primary Material	Ingress Protection	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Current Rating (Amps)	Shell Size - Insert	Insert Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Fastening Type	Backshell Material, Plating	Shell Size - Insert [custom]

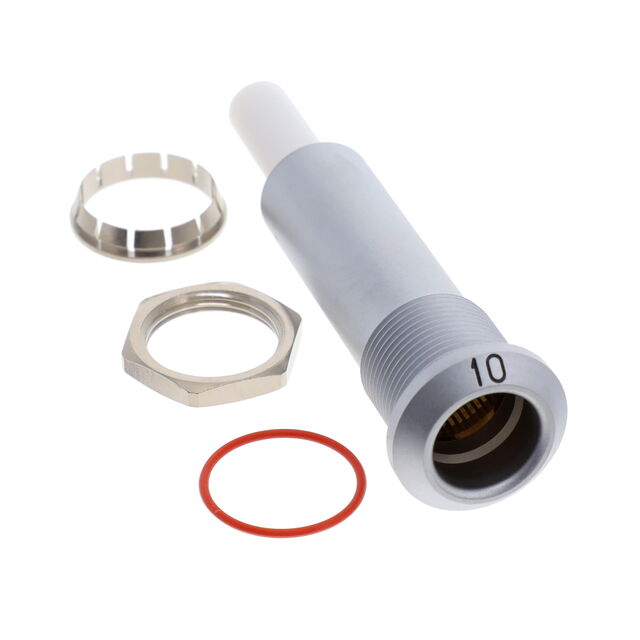

LEMO ERA.1Y.410.CTA	Chrome	Backshell	Brass	Silver	Bulkhead - Rear Side Nut	Metal	IP50 - Dust Protected	Gold	-55 C	230 °C	Receptacle Male Pins	Panel Mount	8 A	410	Polytetrafluoroethylene (PTFE)	Brass	1.5 Ám	59 Áin	1	Push-Pull	Brass Chrome

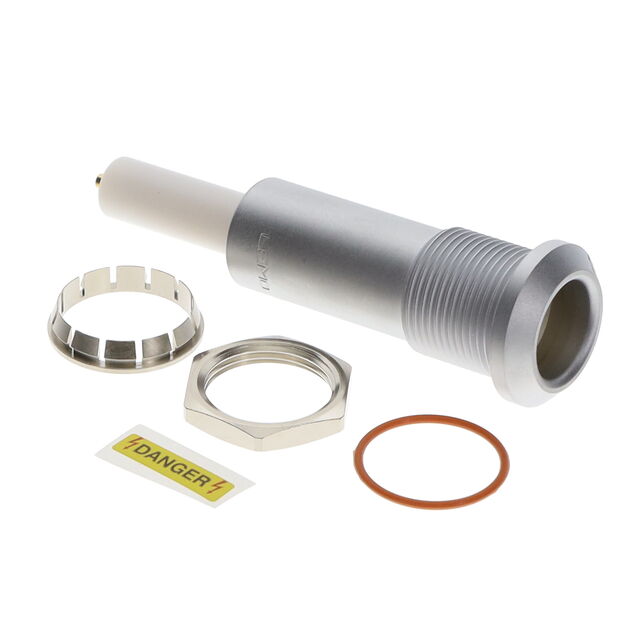

LEMO ERA.1Y.410.CTL	Chrome	Backshell	Brass	Silver	Bulkhead - Rear Side Nut	Metal	IP50 - Dust Protected	Gold	-55 C	230 °C	Receptacle Female Sockets	Panel Mount	8 A	410	Polytetrafluoroethylene (PTFE)	Beryllium Copper	2 µm	78.7 µin	1	Push-Pull	Brass Chrome

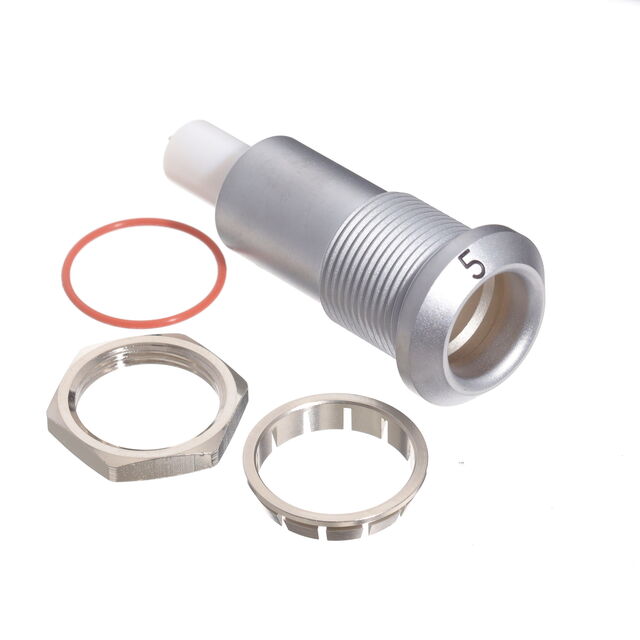

LEMO ERA.1Y.405.CTL	Chrome	Backshell	Brass	Silver	Bulkhead - Rear Side Nut	Metal	IP50 - Dust Protected	Gold	-55 C	230 °C	Receptacle Female Sockets	Panel Mount	8 A	405	Polytetrafluoroethylene (PTFE)	Beryllium Copper	2 µm	78.7 µin	1	Push-Pull	Brass Chrome

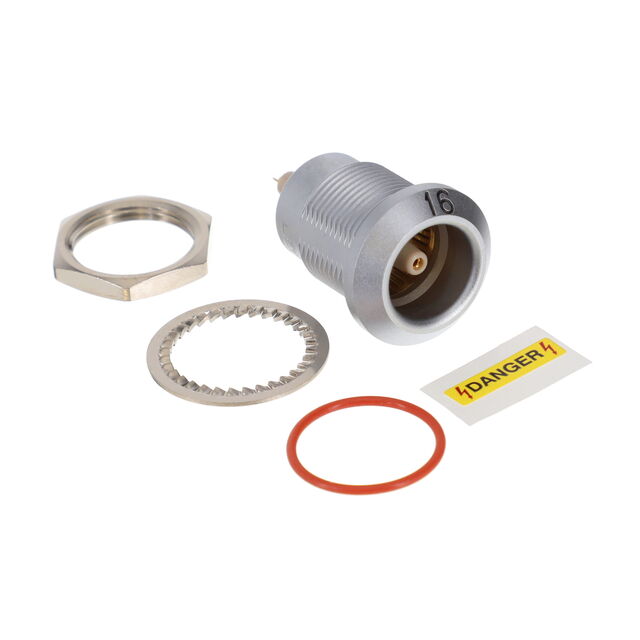

LEMO ERA.1Y.416.CLL	Chrome		Brass	Silver	Bulkhead - Rear Side Nut	Metal	IP50 - Dust Protected	Gold	-55 C	230 °C	Receptacle Female Sockets	Panel Mount	6 A		Polyetheretherketone (PEEK)	Beryllium Copper	2 µm	78.7 µin	1	Push-Pull		416
LEMO ERA.1Y.416.CLL37	Chrome		Brass	Silver	Bulkhead - Rear Side Nut	Metal	IP50 - Dust Protected	Gold	-55 C	230 °C	Receptacle Female Sockets	Panel Mount	6 A		Polyetheretherketone (PEEK)	Beryllium Copper	2 µm	78.7 µin	1	Push-Pull		416
