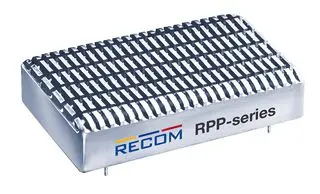

RPP30-2405SW Series
Isolated DC/DC Converters - Through Hole 30W DC/DC 3kV REG 4:1 9-36Vin 5Vout
Manufacturer: Recom Power
Catalog
Isolated DC/DC Converters - Through Hole 30W DC/DC 3kV REG 4:1 9-36Vin 5Vout
Beta
⌘K
Isolated DC/DC Converters - Through Hole 30W DC/DC 3kV REG 4:1 9-36Vin 5Vout
Isolated DC/DC Converters - Through Hole 30W DC/DC 3kV REG 4:1 9-36Vin 5Vout
Isolated DC/DC Converters - Through Hole 30W DC/DC 3kV REG 4:1 9-36Vin 5Vout
| Part | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features | Power (Watts) | Mounting Type | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Applications | Voltage - Output 1 | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Type | Voltage - Input (Min) [Min] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 2250 VDC | 50.8 mm | 1.2 in | 0.46 in | 11.7 mm | 2 in | 30.5 mm | OCP OTP OVP Remote On/Off SCP UVLO | 30 Watts | Through Hole | Active High Enable | 89 °C | -45 °C | 6-DIP Module | ITE (Commercial) | 5 V | 6 A | 36 V | Isolated Module | 9 V | 1 |
