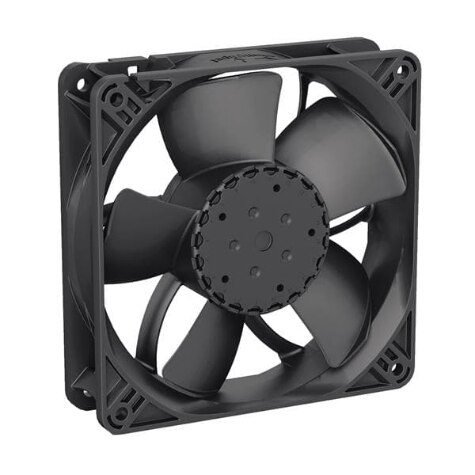

4300N Series
DC Fans Tubeaxial Fan, 119x119x32mm, 48VDC, 130CFM, 5.7W, 3150RPM, Ball, IP20 Rated
Manufacturer: ebm-papst Inc.
Catalog
DC Fans Tubeaxial Fan, 119x119x32mm, 48VDC, 130CFM, 5.7W, 3150RPM, Ball, IP20 Rated
Beta
⌘K
DC Fans Tubeaxial Fan, 119x119x32mm, 48VDC, 130CFM, 5.7W, 3150RPM, Ball, IP20 Rated
DC Fans Tubeaxial Fan, 119x119x32mm, 48VDC, 130CFM, 5.7W, 3150RPM, Ball, IP20 Rated
DC Fans Tubeaxial Fan, 119x119x32mm, 48VDC, 130CFM, 5.7W, 3150RPM, Ball, IP20 Rated
| Part | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Bearing Type | Air Flow | Air Flow | Weight | Weight | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | RPM | Termination | Width [y] | Fan Type | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Square | 119 mm | 119 mm | Ball | 129.3 CFM | 3.62 m³/min | 0.553 lb | 250.84 g | 6.7 W | -4 °F | 167 °F | 48 VDC | 3150 RPM | 2 Wire Leads | 32 mm | Tubeaxial | 47 dB |
