VMM300 Series

Catalog

MOSFET 2N-CH 300V 290A Y3-DCB

Part	Configuration	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Package / Case	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Supplier Device Package	Rds On (Max) @ Id, Vgs [Max]	Power - Max [Max]	Technology

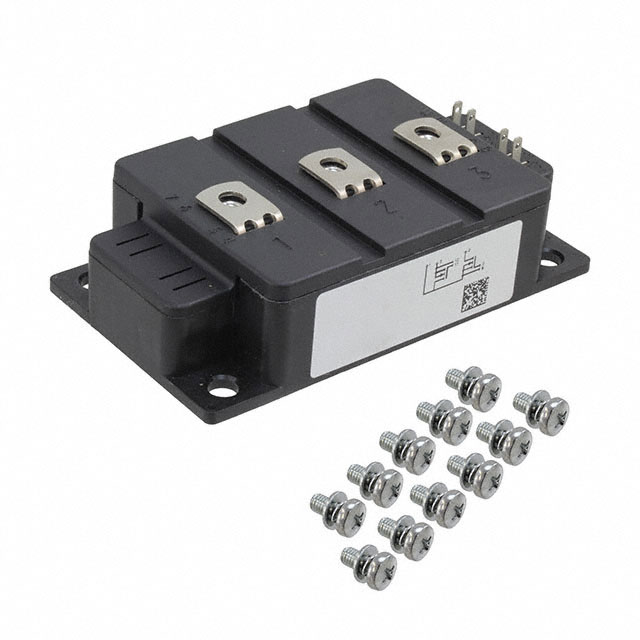

LITTELFUSE VMM300-03F	2 N-Channel (Dual)	1440 nC	290 A	4 V	Y3-DCB	300 V	-40 °C	150 °C	Chassis Mount	40000 pF	Y3-DCB	8.6 mOhm	1.5 kW	MOSFET (Metal Oxide)
