R1966AWH Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 15A 125V
| Part | Mechanical Life | Electrical Life | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Actuator Type | Current Rating (Amps) | Circuit | Voltage Rating - AC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Steps | 10000 Cycles | Panel Mount Right Angle Snap-In | 19.4 mm | 13 mm | ON OFF | On-Off | -30 ░C | 65 °C | White | Concave (Curved) | 15 A | SPST | 125 V | PC Pin |

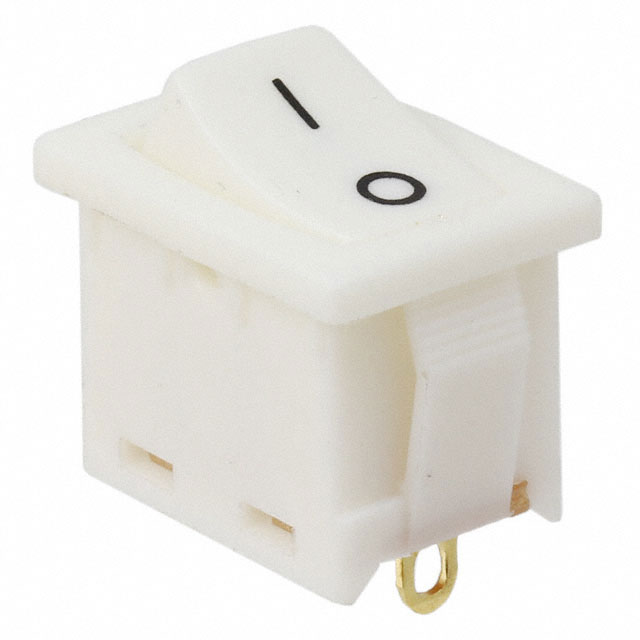

 E-Switch | 30000 Steps | 10000 Cycles | Panel Mount Snap-In | 19.4 mm | 13 mm | O - | On-Off | -30 ░C | 65 °C | White | Concave (Curved) | 15 A | SPST | 125 V | Solder Lug |
E-Switch | 30000 Steps | 10000 Cycles | Panel Mount Right Angle Snap-In | 19.4 mm | 13 mm | O - | On-Off | -30 ░C | 65 °C | White | Concave (Curved) | 15 A | SPST | 125 V | PC Pin |

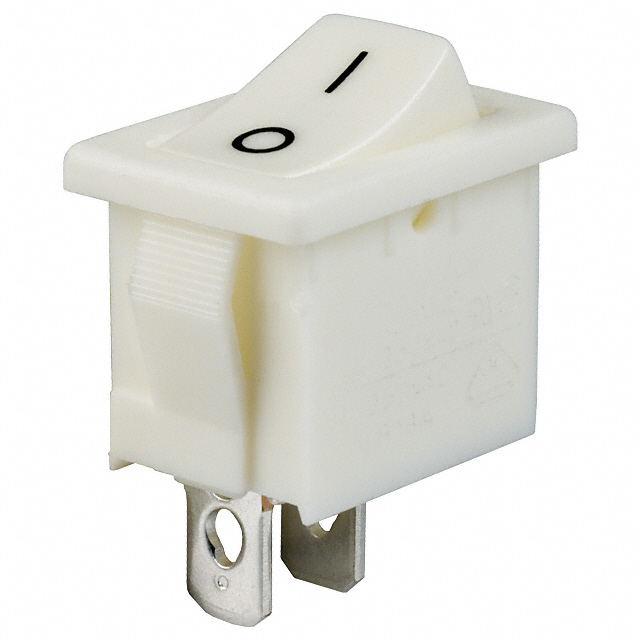

 E-Switch | 30000 Steps | 10000 Cycles | Panel Mount Snap-In | 19.4 mm | 13 mm | O - | On-Off | -30 ░C | 65 °C | White | Concave (Curved) | 15 A | SPST | 125 V | Quick Connect |
