PMA2 Series

Catalog

IC AMP LTE 1.5GHZ-2.5GHZ MC1631

Part	Noise Figure	Current - Supply	P1dB	Gain	RF Type	Mounting Type	Frequency [Max]	Frequency [Min]	Package / Case	Test Frequency	Voltage - Supply	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]

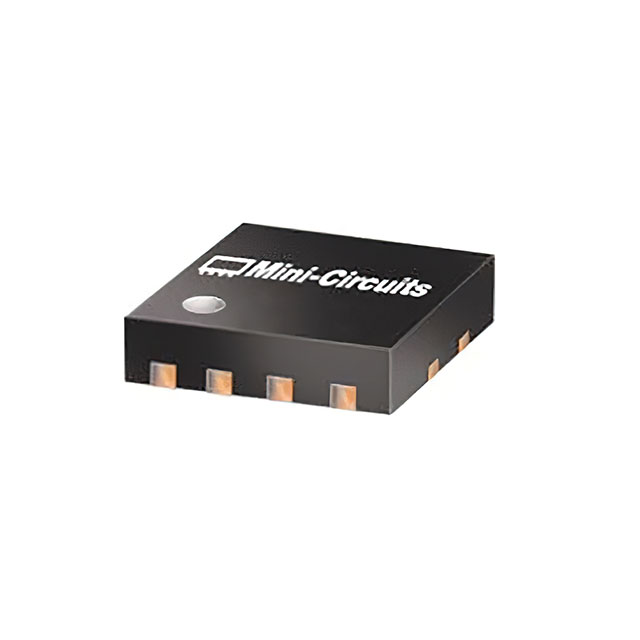

Mini-Circuits PMA2-252LN+	1.2 dB	57 mA	19.5 dBm	15.7 dB	GPS LTE	Surface Mount	2.5 GHz	1.5 GHz	8-TFDFN Exposed Pad	2 GHz	3 V 4 V	MC1631-1
Mini-Circuits PMA2-43LN+	1.08 dB	51 mA	19.9 dBm	12.9 dB	GPS GSM LTE Radar	Surface Mount	4 GHz	1.1 GHz	8-TFDFN Exposed Pad	1.9 GHz		MC1631-1
Mini-Circuits PMA2-183LN+	2.9 dB	48.2 mA	16 dBm	9.3 dBi	LTE SATCOM WiFi WiMAX WLAN	Surface Mount	18 GHz	4 GHz	8-TFDFN Exposed Pad	4 GHz		MC1631-1	4.75 V	5.25 V
Mini-Circuits PMA2-123LN+	3.1 dB	68 mA	15.3 dBm	15.3 dB	LTE Radar SATCOM UMTS WiFi WiMAX WLAN	Surface Mount	12 GHz	500 MHz	8-TFDFN Exposed Pad	2 GHz	5 VDC 6 V	MC1631-1
Mini-Circuits PMA2-63LN+	1 dB	44 mA	18.4 dBm	11.5 dBd		Surface Mount	6 GHz	400 MHz	8-TFDFN Exposed Pad	4 GHz		MC1631-1	4.75 V	5.25 V
Mini-Circuits PMA2-33LN+	0.78 dB	56 mA	17.5 dBm	9.1 dBi	GPS GSM LTE Radar	Surface Mount	3 GHz	400 MHz	8-TFDFN Exposed Pad	2 GHz	3 V	MC1631-1
Mini-Circuits PMA2-123LN5+	2.4 dB	30 mA	12.3 dBm	7.6 dBi	LTE Radar SATCOM UMTS WiFi WiMAX WLAN	Surface Mount	12 GHz	500 MHz	8-TFDFN Exposed Pad	500 MHz		MC1631-1
