3530N Series

Catalog

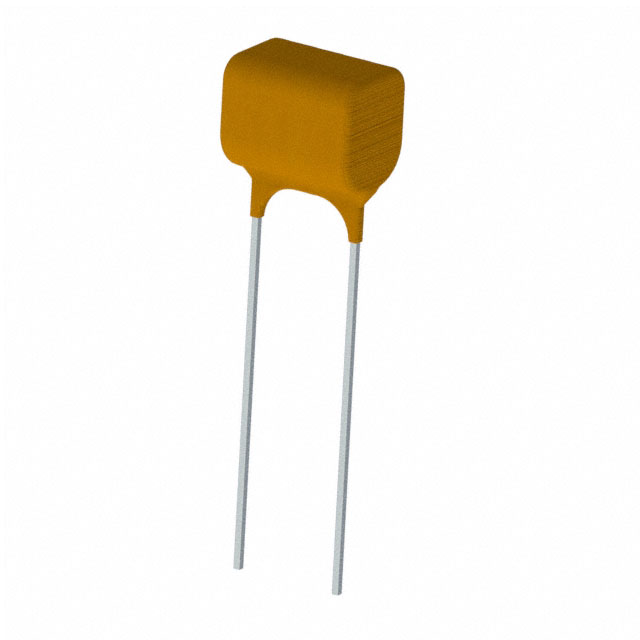

CAP CER 180PF 10KV C0G/NP0 RAD

Part	Mounting Type	Lead Style	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Voltage - Rated	Voltage - Rated	Capacitance	Lead Spacing	Lead Spacing	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Package / Case
Knowles Syfer 3530N181J103LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	10 kV	10 kV	180 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N182J602LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	6000 V	6 kV	1800 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N101J103LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	10 kV	10 kV	100 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N560J103LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	10 kV	10 kV	56 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N101J602LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	6000 V	6 kV	100 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N221J602LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	6000 V	6 kV	220 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N102J602LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	6000 V	6 kV	0.001 µF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N470J602LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	6000 V	6 kV	47 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N221J103LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	10 kV	10 kV	220 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
Knowles Syfer 3530N470J103LE	Through Hole	Straight	General Purpose	0.35 in	12.7 mm	0.5 "	8.89 mm	High Voltage	0.575 in	14.6 mm	10 kV	10 kV	47 pF	0.38 in	9.65 mm	5 %	-55 C	125 °C	C0G NP0	Radial
