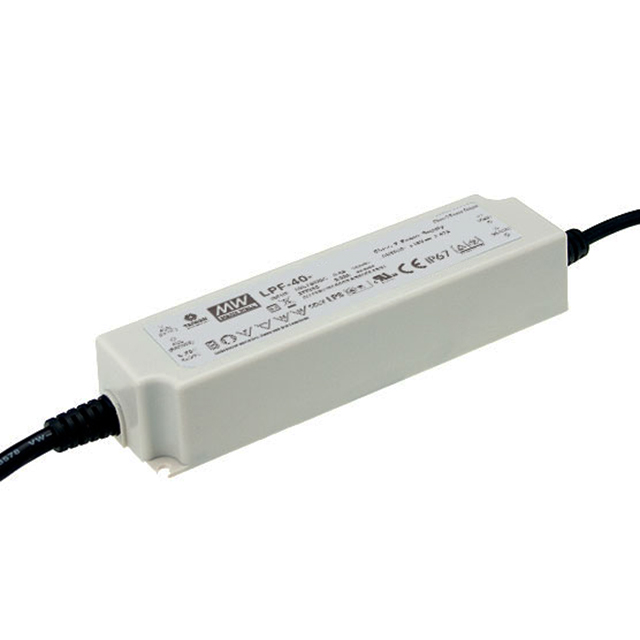

LPF-40 Series

Catalog

LED DRIVER CC AC/DC 9-15V 2.67A

Part	Mounting Type	Topology	Current - Output (Max) [Max]	Ratings	Features	Type	Voltage - Isolation	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Approval Agency	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs
MEAN WELL USA Inc. LPF-40D-15	Chassis Mount	AC DC Converter	2.67 A	IP67	OCP OTP OVP SCP	Constant Current	3750 VDC	85 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C	Analog PWM	CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC	9 V	15 V	1

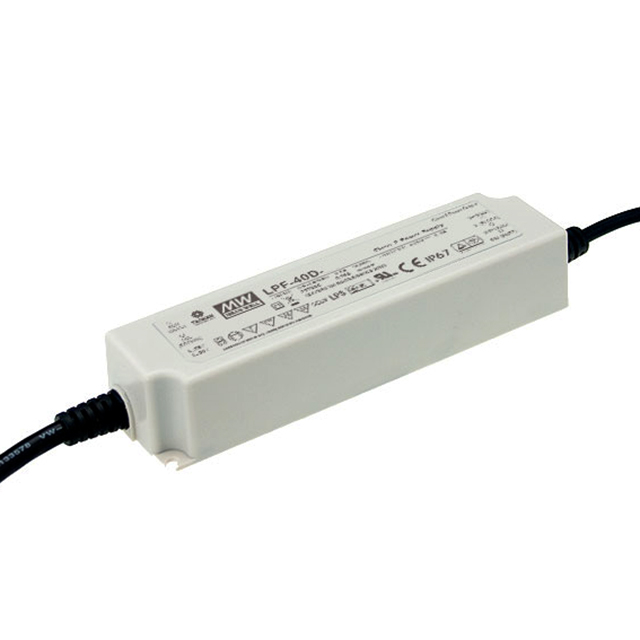

MEAN WELL USA Inc. LPF-40D-30	Chassis Mount	AC DC Converter	1.34 A	IP67	OCP OTP OVP SCP	Constant Current	3750 VDC	88 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C	Analog PWM	CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC			1
MEAN WELL USA Inc. LPF-40D-42	Chassis Mount	AC DC Converter	960 mA	IP67	OCP OTP OVP SCP	Constant Current	3750 VDC	88.5 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C	Analog PWM	CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC	25.2	42 V	1
MEAN WELL USA Inc. LPF-40-30	Chassis Mount	AC DC Converter	1.34 A	IP67	OCP OTP OVP SCP	Constant Current Voltage	3750 VDC	88 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C		CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC			1
MEAN WELL USA Inc. LPF-40-24	Chassis Mount	AC DC Converter	1.67 A	IP67	OCP OTP OVP SCP	Constant Current Voltage	3750 VDC	87 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C		CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC	14.4 V	24 V	1
MEAN WELL USA Inc. LPF-40-54	Chassis Mount	AC DC Converter	760 mA	IP67	OCP OTP OVP SCP	Constant Current Voltage	3750 VDC	90 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C		CB CCC CE PSE TUV UR	41 W	90 VAC	305 VAC	32.4 V	54 V	1
MEAN WELL USA Inc. LPF-40-20	Chassis Mount	AC DC Converter	2 A	IP67	OCP OTP OVP SCP	Constant Current Voltage	3750 VDC	86 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C		CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC	12 V	20 V	1
MEAN WELL USA Inc. LPF-40D-12	Chassis Mount	AC DC Converter	3.34 A	IP67	OCP OTP OVP SCP	Constant Current	3750 VDC	84 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C	Analog PWM	CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC	7.2 V	12 V	1
MEAN WELL USA Inc. LPF-40D-24	Chassis Mount	AC DC Converter	1.67 A	IP67	OCP OTP OVP SCP	Constant Current	3750 VDC	87 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C	Analog PWM	CB CCC CE cURus ENEC PSE TUV	40 W	90 VAC	305 VAC	14.4 V	24 V	1
MEAN WELL USA Inc. LPF-40-48	Chassis Mount	AC DC Converter	840 mA	IP67	OCP OTP OVP SCP	Constant Current Voltage	3750 VDC	90 %	43 mm	6.4 in	162.5 mm	1.69 "	1.26 "	32 mm	Wire Leads	80 °C	-40 C		CB CCC CE PSE TUV UR	40 W	90 VAC	305 VAC	28.8 V	48 V	1
