G6HK-2 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY TELECOM DPDT 1A 3V

Part	Contact Form	Coil Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Load - Max Switching	Approval Agency	Release Time	Relay Type	Contact Material	Mounting Type	Coil Resistance	Contact Rating (Current)	Termination Style	Coil Current	Must Operate Voltage	Coil Voltage
Omron Electronics Inc-EMC Div G6HK-2-100-DC3	DPDT (2 Form C)	Latching Dual Coil	3 ms	-40 °C	70 °C	110 VDC 125 VAC	110 W 125 VA	CSA UR	3 ms	Telecom	Gold (Au) Silver (Ag)	Through Hole	45 Ohms	1 A	PC Pin	66.7 mA	2.25 VDC
Omron Electronics Inc-EMC Div G6HK-2 DC4.5	DPDT (2 Form C)	Latching Dual Coil	3 ms	-40 °C	70 °C	110 VDC 125 VAC	110 W 125 VA	CSA UR	3 ms	Telecom	Gold (Au) Silver (Ag)	Through Hole	101 Ohms	1 A	PC Pin	44.4 mA	3.38 VDC	4.5 VDC
Omron Electronics Inc-EMC Div G6HK-2-100-DC5	DPDT (2 Form C)	Latching Dual Coil	3 ms	-40 °C	70 °C	110 VDC 125 VAC	110 W 125 VA	CSA UR	3 ms	Telecom	Gold (Au) Silver (Ag)	Through Hole	125 Ohms	1 A	PC Pin	40 mA	3.75 VDC	5 VDC

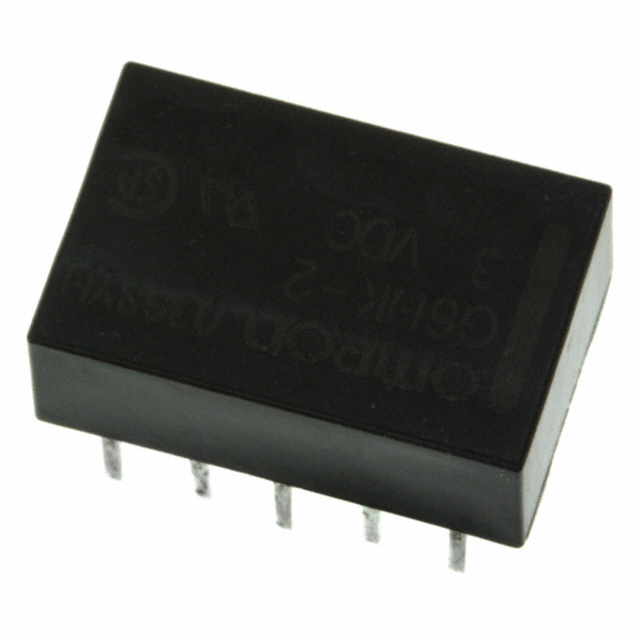

Omron Electronics Inc-EMC Div G6HK-2-DC3	DPDT (2 Form C)	Latching Dual Coil	3 ms	-40 °C	70 °C	110 VDC 125 VAC	110 W 125 VA	CSA UR	3 ms	Telecom	Gold (Au) Silver (Ag)	Through Hole	45 Ohms	1 A	PC Pin	66.7 mA	2.25 VDC
Omron Electronics Inc-EMC Div G6HK-2-100-DC12	DPDT (2 Form C)	Latching Dual Coil	3 ms	-40 °C	70 °C	110 VDC 125 VAC	110 W 125 VA	CSA UR	3 ms	Telecom	Gold (Au) Silver (Ag)	Through Hole	720 Ohms	1 A	PC Pin	16.7 mA	9 VDC	12 VDC

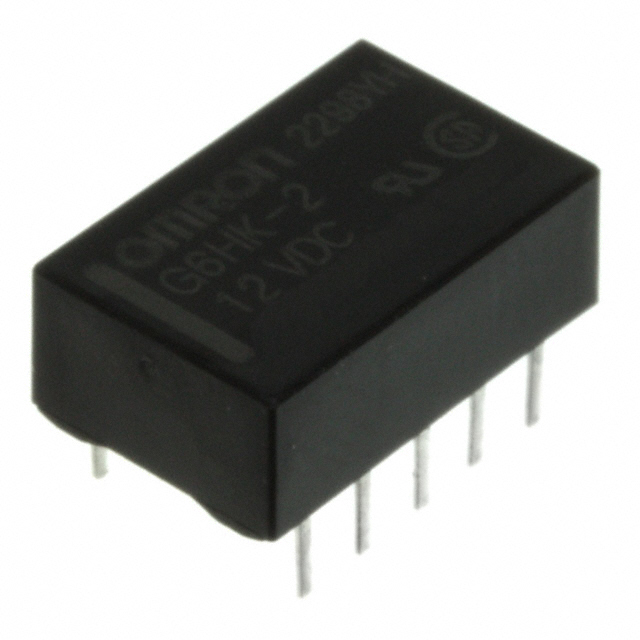

Omron Electronics Inc-EMC Div G6HK-2-DC12	DPDT (2 Form C)	Latching Dual Coil	3 ms	-40 °C	70 °C	110 VDC 125 VAC	110 W 125 VA	CSA UR	3 ms	Telecom	Gold (Au) Silver (Ag)	Through Hole	720 Ohms	1 A	PC Pin	16.7 mA	9 VDC	12 VDC

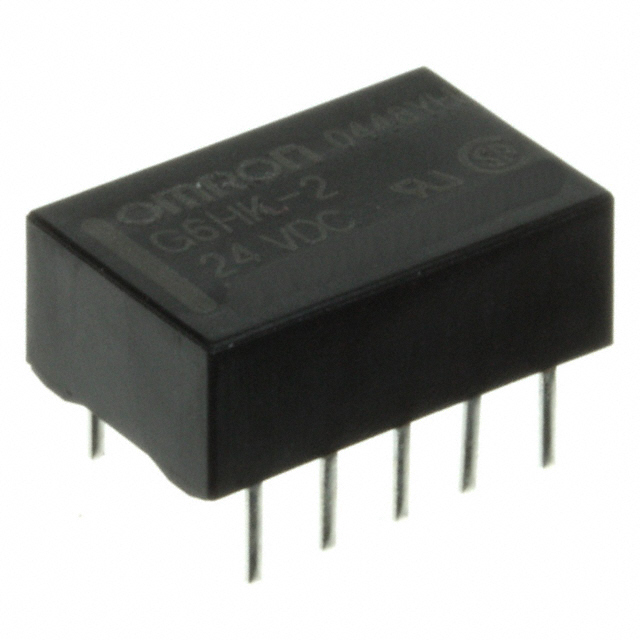

Omron Electronics Inc-EMC Div G6HK-2-DC24	DPDT (2 Form C)	Latching Dual Coil	3 ms	-40 °C	70 °C	110 VDC 125 VAC	110 W 125 VA	CSA UR	3 ms	Telecom	Gold (Au) Silver (Ag)	Through Hole	1.92 kOhms	1 A	PC Pin		18 VDC	24 VDC
