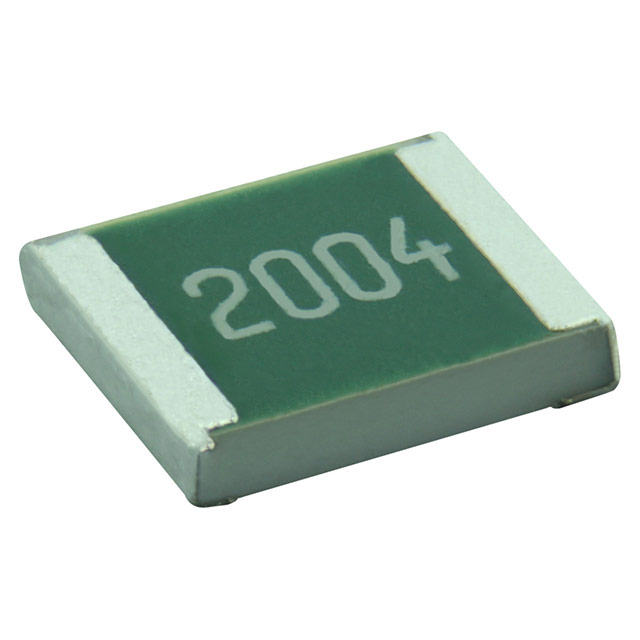

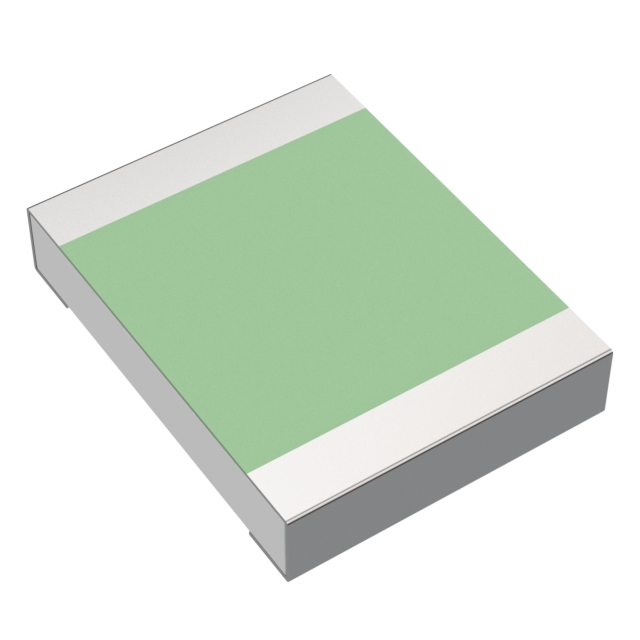

TNPW1210 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

Catalog

RES 14 OHM 0.5% 1/2W 1210

...

Part	Features	Number of Terminations	Composition	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Package / Case	Package / Case	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance
Vishay General Semiconductor - Diodes Division TNPW121014R0DEEA	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	14 Ohms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division TNPW1210147RBEEN	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	147 Ohms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
Vishay General Semiconductor - Diodes Division TNPW12101M15BEEA	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	1.15 MOhms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
Vishay General Semiconductor - Diodes Division TNPW121068K1BEEA	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	68.1 kOhms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
Vishay General Semiconductor - Diodes Division TNPW12105K62BEEA	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	5.62 kOhms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
Vishay General Semiconductor - Diodes Division TNPW12107K87BEEA	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	7.87 kOhms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
Vishay General Semiconductor - Diodes Division TNPW121014R0DETA	Military	2	Thin Film	14 Ohms	0.03 in	0.75 mm	1210	1210	3225 Metric		0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.333 W	0.3333333333333333 W	125 °C	-55 °C
Vishay General Semiconductor - Diodes Division TNPW1210174KBEEN	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	174 kOhms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
Vishay General Semiconductor - Diodes Division TNPW1210390KBEEN	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	390 kOhms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
Vishay General Semiconductor - Diodes Division TNPW121042K2BEEN	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	Thin Film	42.2 kOhms	0.03 in	0.75 mm	1210	1210	3225 Metric	AEC-Q200	0.096 in	3.2 mm	2.45 mm	0.126 in	25 ppm/°C	0.5 W	0.5 W	155 °C	-55 °C	0.1 %
