JL05-2A2 Series

Catalog

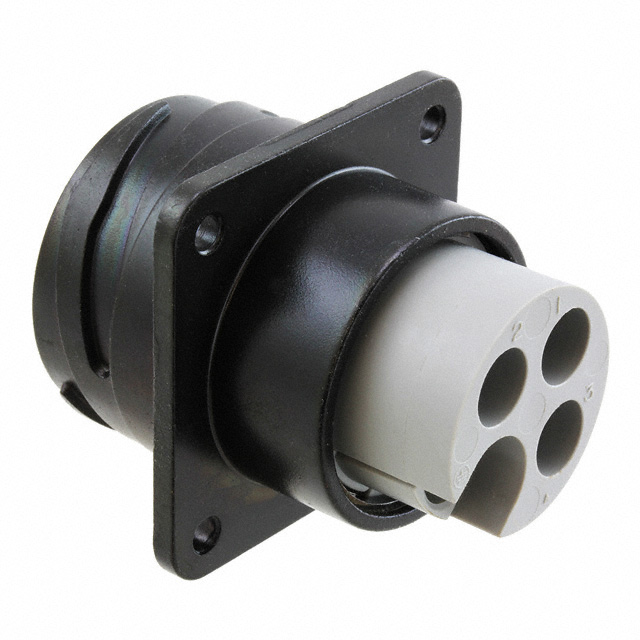

CONN RCPT HSG MALE 37POS PNL MT

Part	Note	Shell Size - Insert	Housing Color	Contact Type	Number of Positions	Ingress Protection	Contact Size	Mounting Type	Mounting Feature	Orientation [x]	Material Flammability Rating	Contact Shape	Connector Type	Shell Material	Shell Finish	Type	Shielding	Insert Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Orientation	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics JL05-2A28-21PCX-F0-R	Contacts Not Included	21 28	Black	Crimp	37	IP67 - Dust Tight Waterproof	16	Panel Mount	Flange	X	UL94 V-0	Circular	Receptacle Housing	Aluminum	Zinc	For Male Pins	Unshielded	Synthetic Resin	Bayonet Lock	-55 C	125 °C
JAE Electronics JL05-2A22-14SC-F0-RK
JAE Electronics JL05-2A22-23PC-F0-RK
JAE Electronics JL05-2A22-14PC-F0-R	Contacts Not Included		Black	Crimp	19	IP67 - Dust Tight Waterproof	16	Panel Mount	Flange		UL94 V-0	Circular	Receptacle Housing	Aluminum	Zinc	For Male Pins	Unshielded	Synthetic Resin	Bayonet Lock	-55 C	125 °C	22-14	N (Normal)
JAE Electronics JL05-2A24-52ASC-F0-R	Contacts Not Included		Black	Crimp	52	IP67 - Dust Tight Waterproof	20	Panel Mount	Flange		UL94 V-0	Circular	Receptacle Housing	Aluminum	Zinc	For Female Sockets	Unshielded	Synthetic Resin	Bayonet Lock	-55 C	125 °C	24-52A	N (Normal)
JAE Electronics JL05-2A20-30APC-F0-R	Contacts Not Included		Black	Crimp	30	IP67 - Dust Tight Waterproof	20	Panel Mount	Flange		UL94 V-0	Circular	Receptacle Housing	Aluminum	Zinc	For Male Pins	Unshielded	Synthetic Resin	Bayonet Lock	-55 C	125 °C		N (Normal)	30 A	20 A
JAE Electronics JL05-2A22-22PC-F0-RK
JAE Electronics JL05-2A28-73ASC-F0-R	Contacts Not Included		Black	Crimp	73	IP67 - Dust Tight Waterproof	20	Panel Mount	Flange		UL94 V-0	Circular	Receptacle Housing	Aluminum	Zinc	For Female Sockets	Unshielded	Synthetic Resin	Bayonet Lock	-55 C	125 °C	28-73A	N (Normal)
JAE Electronics JL05-2A22-22PC-F0-R	Contacts Not Included		Black	Crimp	4	IP67 - Dust Tight Waterproof	8	Panel Mount	Flange		UL94 V-0	Circular	Receptacle Housing	Aluminum	Zinc	For Male Pins	Unshielded	Synthetic Resin	Bayonet Lock	-55 C	125 °C		N (Normal)	22	22
JAE Electronics JL05-2A22-14SC-F0-R	Contacts Not Included		Black	Crimp	19	IP67 - Dust Tight Waterproof	16	Panel Mount	Flange		UL94 V-0	Circular	Receptacle Housing	Aluminum	Zinc	For Female Sockets	Unshielded	Synthetic Resin	Bayonet Lock	-55 C	125 °C	22-14	N (Normal)
