AONL323 Series

Catalog

MOSFET 2N/2P-CH 30V 8A/7A 12DFN

Part	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Supplier Device Package	Power - Max [Max]	Configuration [custom]	Configuration [custom]	Drain to Source Voltage (Vdss)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Input Capacitance (Ciss) (Max) @ Vds

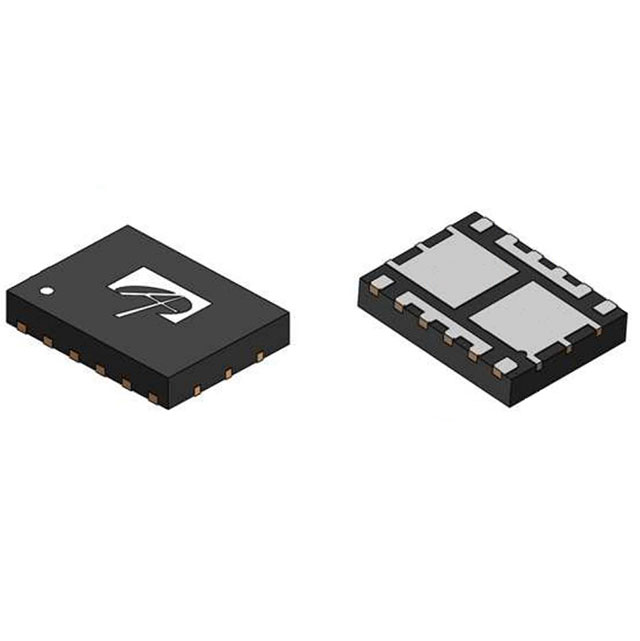

Alpha & Omega Semiconductor Inc. AONL32328	15 nC 24 nC	2.4 V 2.6 V	7 A 8 A	21 mOhm 27 mOhm	12-DFN-EP (4x3)	2.6 W	2	2	30 V	Surface Mount	150 °C	-55 °C	MOSFET (Metal Oxide)	395 pF 730 pF
