7202A Series
Manufacturer: Belden Inc.
Beta
⌘K

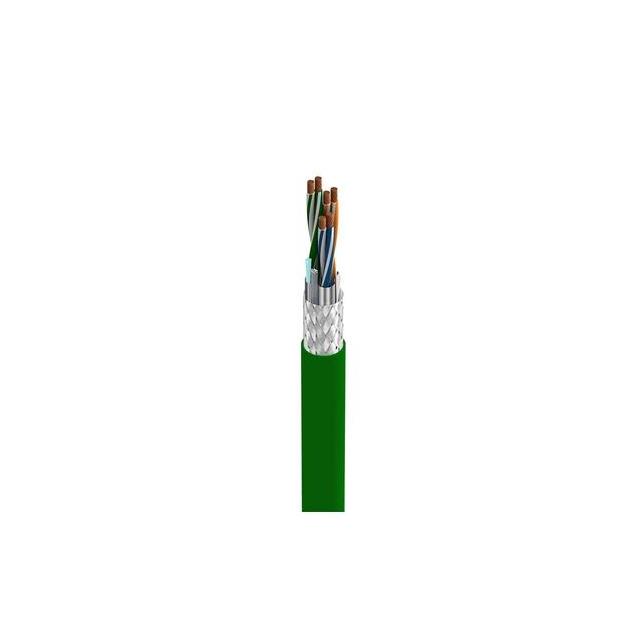

MULTI-PAIR 6COND 24AWG GRN
| Part | Shield Coverage | Shield Material | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Length | Length | Wire Gauge | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Conductor Insulation | Jacket (Insulation) Material | Features | Voltage | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Industrial | -20 ░C | 60 °C | 0.336 in | 8.53 mm | Braid Foil | 304.8 m | 1000 ft | 24 AWG | 6 | 1.143 mm | 0.045 in | 41 | 40 | Multi-Pair | Green | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant | 300 VDC | Copper Bare |
