074059 Series

Manufacturer: Molex

Catalog

CONN HEADER VHDM 60POS PCB

Part	Number of Positions	Voltage Rating	Number of Columns	Termination	Color	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Type
Molex 0740591101	60	120 VDC	10	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740592503	150	120 VDC	25 columns	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins

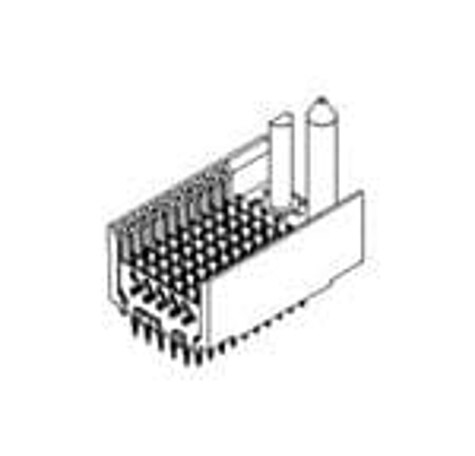

Molex 0740598504	150	120 VDC	25 columns	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740591013	60	120 VDC	10	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740592501	150	120 VDC	25 columns	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740591102	60	120 VDC	10	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740591022	60	120 VDC	10	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740591043	60	120 VDC	10	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740591044	60	120 VDC	10	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
Molex 0740591042	60	120 VDC	10	Press-Fit	Black	Through Hole	All	2 A	105 ░C	-55 °C	Guide Right VHDM	0.079 in	2 mm	Gold	6	UL94 V-0	0.76 Ám	30 Áin	Shielded	Header Male Pins
