1969830 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

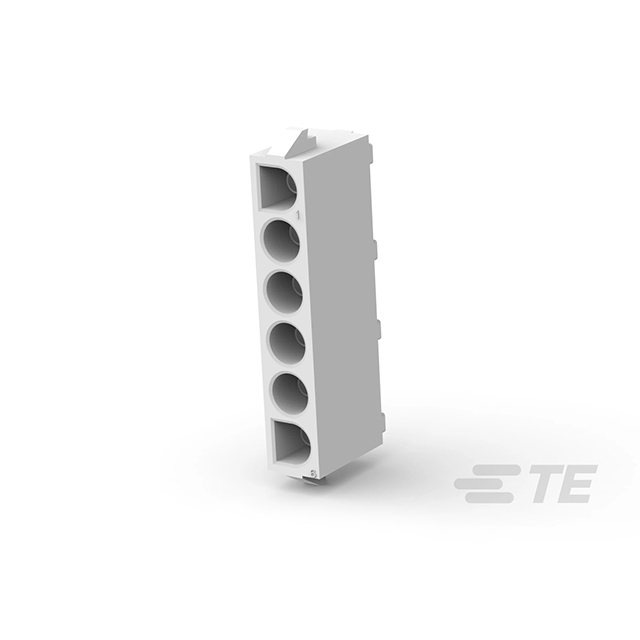

6P UMNL SKT ASSY GW
| Part | Insulation Height | Insulation Height | Number of Rows | Contact Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Color | Contact Material | Connector Type | Contact Shape | Mounting Type | Termination | Current Rating (Amps) | Contact Finish - Post | Number of Positions Loaded | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.58 in | 14.73 mm | 1 | Female Socket | Nylon Polyamide (PA) | -40 °C | 105 ░C | 6 | UL94 V-0 | 6.35 mm | 0.25 in | Locking Ramp | Natural | Phosphor Bronze | Receptacle | Circular | Through Hole | Solder | 19 A | Tin | All | 600 VAC |
