ME60A2403 Series

Catalog

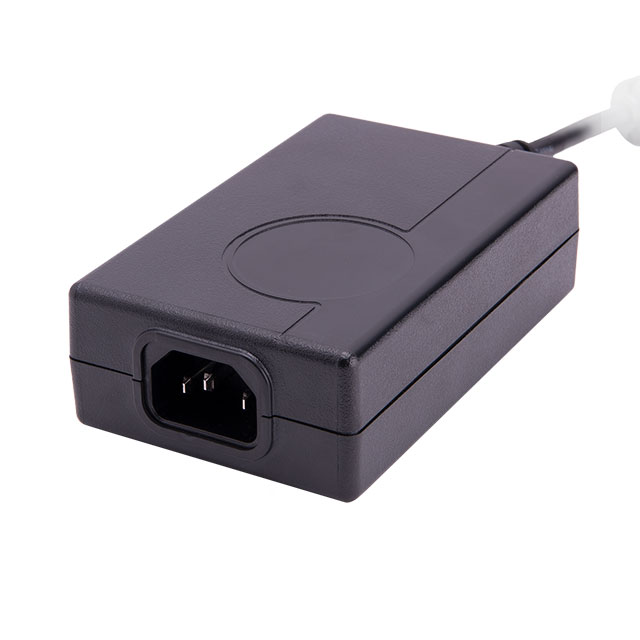

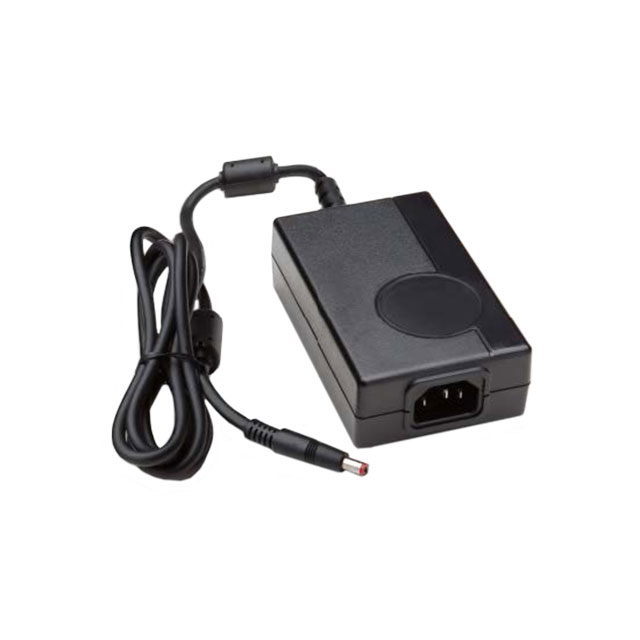

AC/DC DESKTOP ADAPTER 24V 65W

Part	Current - Output (Max) [Max]	Input Connector	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Approval Agency	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Form	Input Type	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Cord Length	Cord Length
SL POWER / Advanced Energy ME60A2403N01	2.7 A	IEC 320-C8	Medical	1.29 in	2.67 in	67.9 mm	4.25 in	108 mm	32.7 mm	Positive Center	-20 ░C	50 °C	24 V	CE cURus	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	Desktop (Class II)	Cord (Sold Separately)	65 W	264 VAC	90 VAC	International	1.15 m	45.3 in
SL POWER / Advanced Energy ME60A2403F01	2.7 A	IEC 320-C14	Medical	1.29 in	2.67 in	67.9 mm	4.25 in	108 mm	32.7 mm	Positive Center	-20 ░C	50 °C	24 V	CE cURus	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	Desktop (Class I)	Cord (Sold Separately)	65 W	264 VAC	90 VAC	International	1.15 m	45.3 in
SL POWER / Advanced Energy ME60A2403Q01	2.7 A	IEC 320-C18	Medical	1.29 in	2.67 in	67.9 mm	4.25 in	108 mm	32.7 mm	Positive Center	-20 ░C	70 °C	24 V	CE	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	Desktop (Class II)	Cord (Sold Separately)	60 W	264 VAC	90 VAC	International	1.15 m	45.3 in
