855-22 Series

Catalog

CONN SPRING PISTON 26POS SMD

Part	Number of Rows [custom]	Mounting Type	Number of Contacts	Pitch	Pitch	Connector Type	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Material	Contact Finish	Number of Contacts [custom]

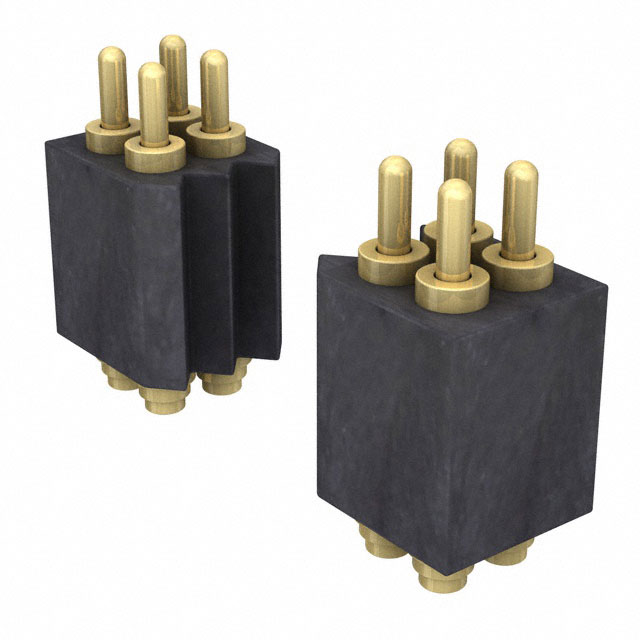

Mill-Max Manufacturing Corp. 855-22-026-30-001101	2	Surface Mount	26	0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 855-22-034-30-001101	2	Surface Mount		0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold

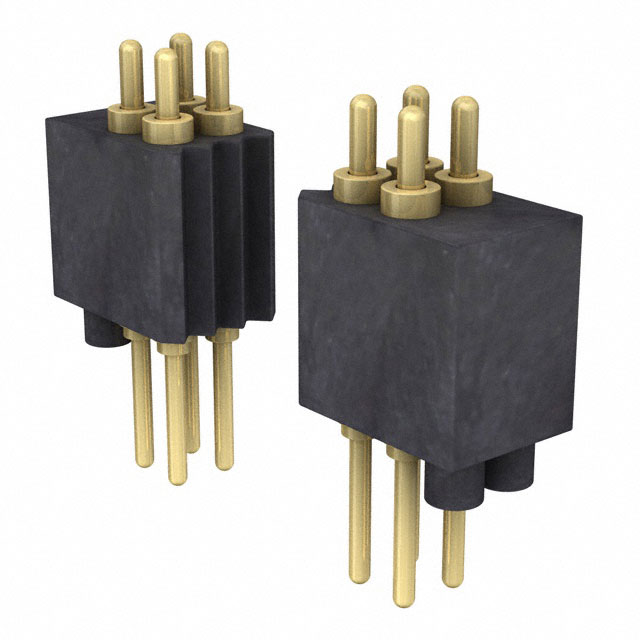

Mill-Max Manufacturing Corp. 855-22-024-10-001101	2	Through Hole		0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold	24

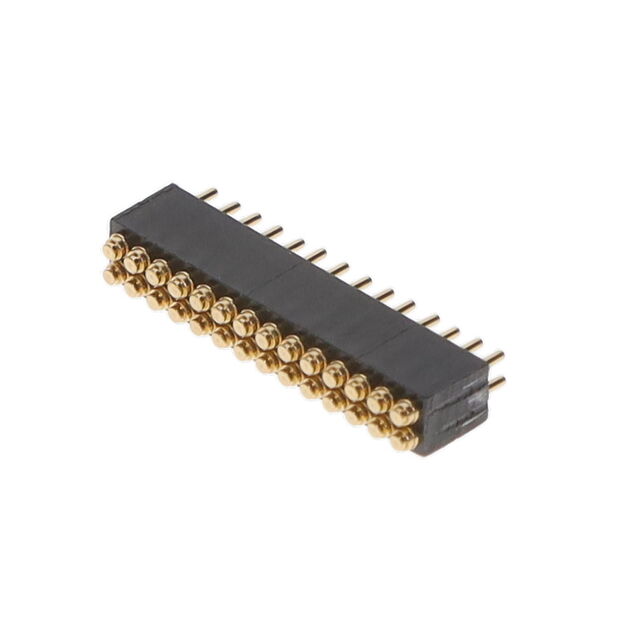

Mill-Max Manufacturing Corp. 855-22-028-30-001101	2	Surface Mount	28	0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 855-22-010-10-001101	2	Through Hole	10	0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 855-22-040-10-001101	2	Through Hole	40	0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold

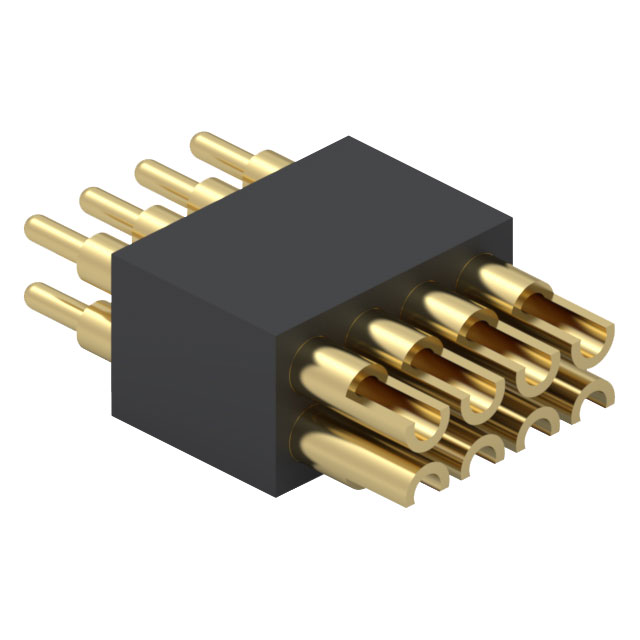

Mill-Max Manufacturing Corp. 855-22-008-10-003101	2	Solder Cup Through Hole	8	0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 855-22-010-30-001101	2	Surface Mount	10	0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 855-22-020-10-001101	2	Through Hole	20	0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 855-22-018-30-001101	2	Surface Mount		0.05 in	1.27 mm	Piston	1.27 mm	0.05 "	20 µin	0.51 µm	Brass Alloy	Gold
