ANX80 Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 30A 80VDC BLADE MAX
| Part | DC Cold Resistance | Color | Voltage Rating - DC | Approval Agency | Melting I²t | Breaking Capacity @ Rated Voltage | Fuse Type | Package / Case | Response Time | Mounting Type | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

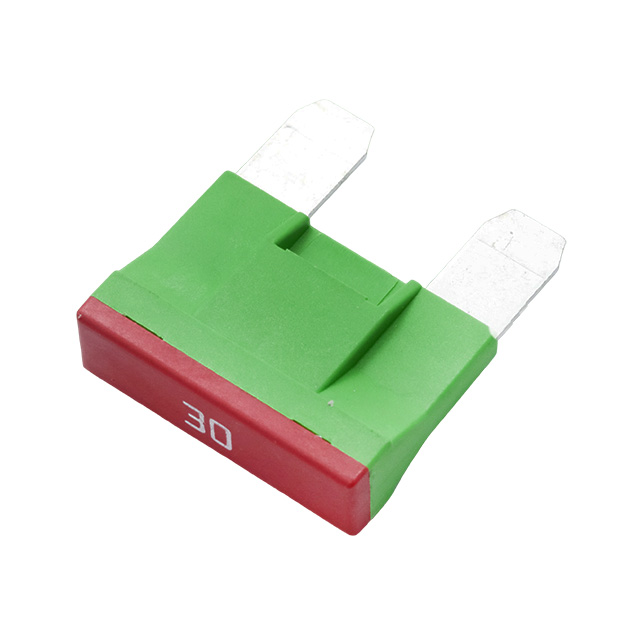

 OptiFuse | 0.0022 Ohms | Green | 80 V | cURus UL 248 | 3330 | 1 kA | Automotive | Blade Max | Fast Blow | Requires Holder | 30 A | 8.8 mm | 21.5 mm | 1.181 in | 0.346 " | 0.846 in | 30 mm |

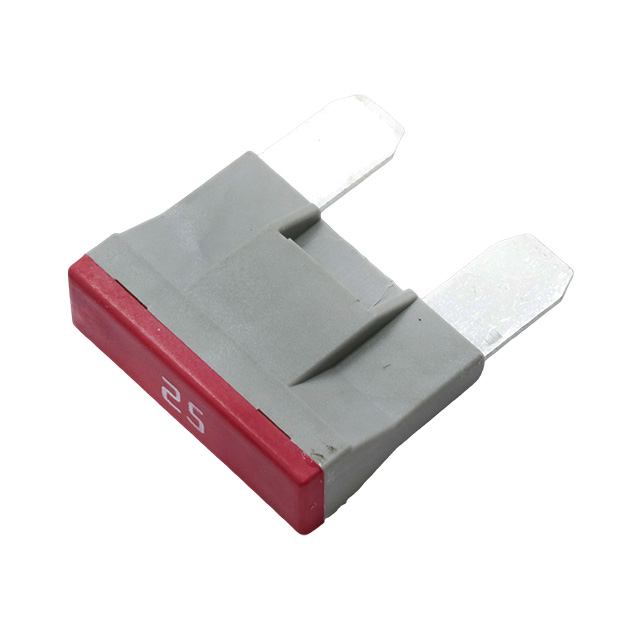

 OptiFuse | 0.0029 Ohms | Gray | 80 V | cURus UL 248 | 2188 | 1 kA | Automotive | Blade Max | Fast Blow | Requires Holder | 25 A | 8.8 mm | 21.5 mm | 1.181 in | 0.346 " | 0.846 in | 30 mm |

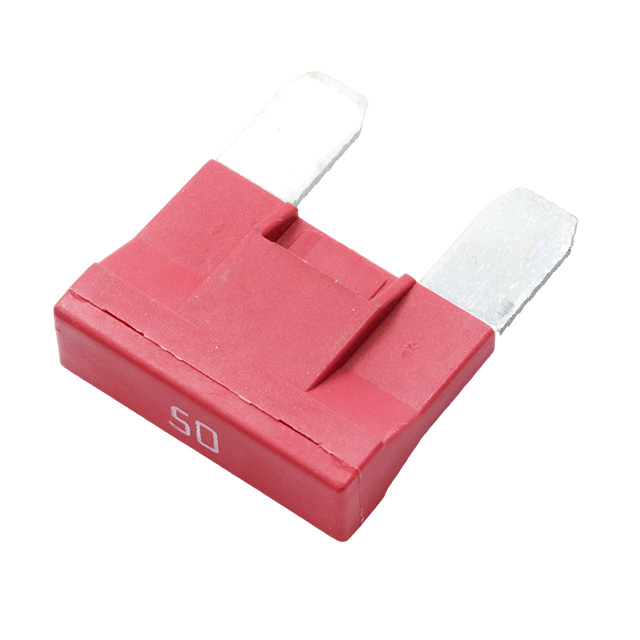

 OptiFuse | 0.00117 Ohms | Red | 80 V | cURus UL 248 | 10000 | 1 kA | Automotive | Blade Max | Fast Blow | Requires Holder | 50 A | 8.8 mm | 21.5 mm | 1.181 in | 0.346 " | 0.846 in | 30 mm |
