MP3371 Series

Catalog

EVALUATION BOARD, SYNC BOOST WLED DRIVER ROHS COMPLIANT: YES

Part	Supplied Contents	Voltage - Output	Features	Utilized IC / Part	Current - Output / Channel [custom]	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Contents	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Topology	Supplier Device Package	Mounting Type	Frequency	Type	Applications	Grade	Voltage - Supply (Max) [Max]	Dimming	Package / Case	Voltage - Supply (Min) [Min]

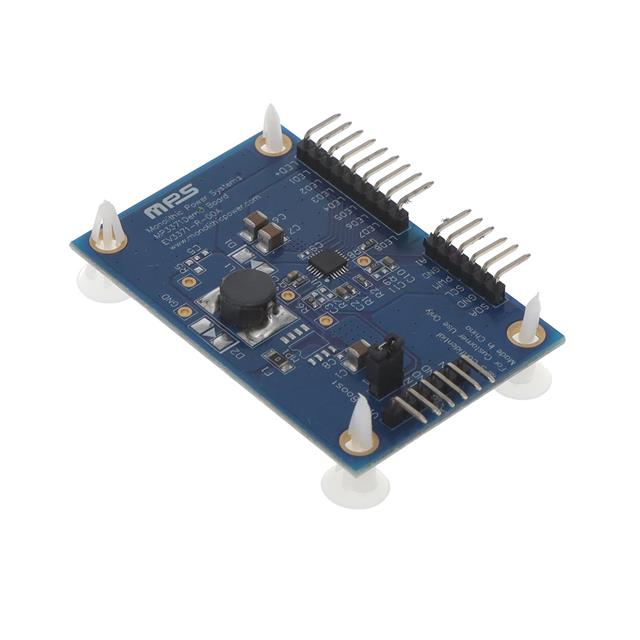

Monolithic Power Systems Inc. EV3371-R-00A	Board(s)	45 V	Dimmable	MP3371	50 mA	8 Non-Isolated Outputs	3 V	30 V	Board(s)
Monolithic Power Systems Inc. MP3371GR-0000-P		50 V			50 mA					-40 C	125 °C	8	Step-Up (Boost)	24-QFN (4x4)	Surface Mount	1.2 MHz 350 kHz 500 kHz 650 kHz 800 kHz 950 kHz	DC DC Regulator	Backlight	Automotive	30 V	Analog I2C PWM	24-VFQFN Exposed Pad	3 V
Monolithic Power Systems Inc. MP3371GR-0000-Z		50 V			50 mA					-40 C	125 °C	8	Step-Up (Boost)	24-QFN (4x4)	Surface Mount	1.2 MHz 350 kHz 500 kHz 650 kHz 800 kHz 950 kHz	DC DC Regulator	Backlight	Automotive	30 V	Analog I2C PWM	24-VFQFN Exposed Pad	3 V
