ABL-254-54 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

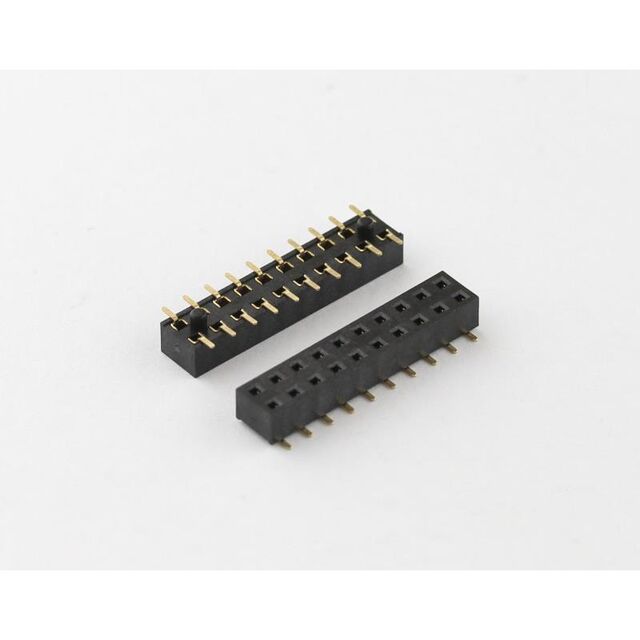

PIN- & FEMALE HEADER FEMALE SMT
| Part | Contact Shape | Contact Material | Insulation Material | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Number of Positions | Fastening Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish - Mating | Number of Rows [custom] | Features | Termination | Connector Type | Mounting Type | Material Flammability Rating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Square | Brass | Nylon 6T Polyamide (PA6T) | 0.15 in 3.81 mm | 0.1 in | 2.54 mm | All | 54 | Push-Pull | 0.1 " | 2.54 mm | 3 A | -55 C | 105 ░C | Female Socket | Gold | 2 | Board Guide | Solder | Receptacle | Surface Mount | UL94 V-0 | Black |
