XG4 Series
Headers & Wire Housings Strain Relief for XG4E Socket 30Pin
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
Headers & Wire Housings Strain Relief for XG4E Socket 30Pin
Headers & Wire Housings Strain Relief for XG4E Socket 30Pin
Headers & Wire Housings Strain Relief for XG4E Socket 30Pin
Headers & Wire Housings Strain Relief for XG4E Socket 30Pin
| Part | Contact Finish - Mating | Shrouding | Features | Style | Number of Rows [custom] | Number of Positions [Min] | Number of Positions [Max] | Mounting Type | Fastening Type | Current Rating (Amps) | Insulation Height | Insulation Height | Number of Positions Loaded | Material Flammability Rating | Contact Length - Mating [x] | Contact Length - Mating [x] | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Connector Type | Insulation Color | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Termination | Contact Material | Voltage Rating | Contact Type | Accessory Type | Number of Positions | For Use With/Related Products | Contact Finish | Wire Gauge | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Color | Cable Termination | Wire Type | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

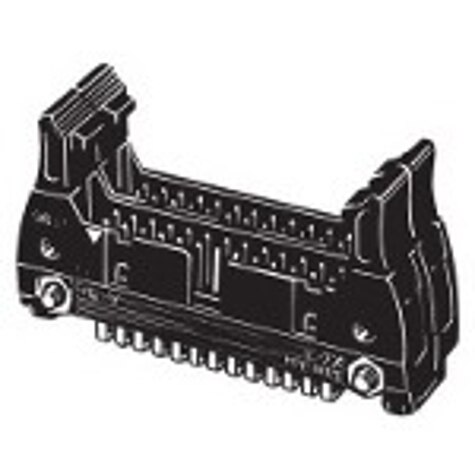

Omron Electronics Inc-EMC Div | Gold | Shrouded - 4 Wall | Keying Slot Mounting Flange Mounting Hardware | Board to Cable/Wire | 2 | 50 | 50 | Right Angle Through Hole | Latch Lock/Eject Hooks Long | 3 A | 17 mm | 0.669 in | All | UL94 V-0 | 0.24 in | 6.1 mm | 0.1 " | 2.54 mm | Square | Tin | -55 C | 105 ░C | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | Header Stackable (2) | Black | 5.9 µin | 0.15 µm | Solder | Brass Nickel | 300 VDC | Male Pin | ||||||||||||||

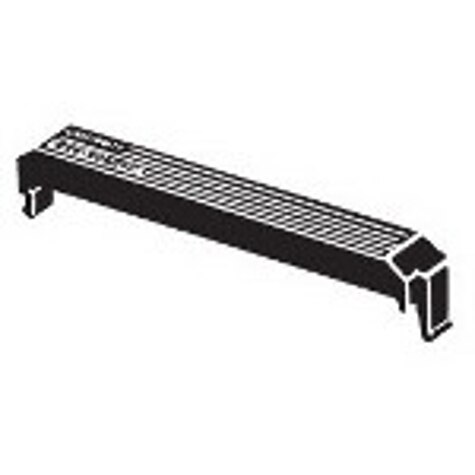

Omron Electronics Inc-EMC Div | Strain Relief | 30 | XG4 Series | ||||||||||||||||||||||||||||||||||||||||||||

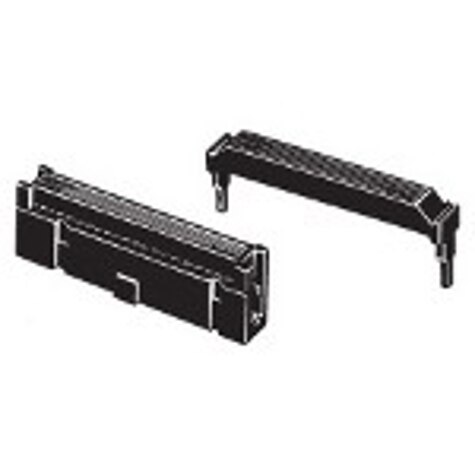

Omron Electronics Inc-EMC Div | Feed Through Polarizing Key Strain Relief | 2 | Free Hanging (In-Line) | Receptacle | Female Socket | 50 | Gold | 28 AWG | 0.1 " | 2.54 mm | 5.9 µin | 0.15 µm | Black | IDC | Ribbon Cable | 2.54 mm | 0.1 " |
