7111-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

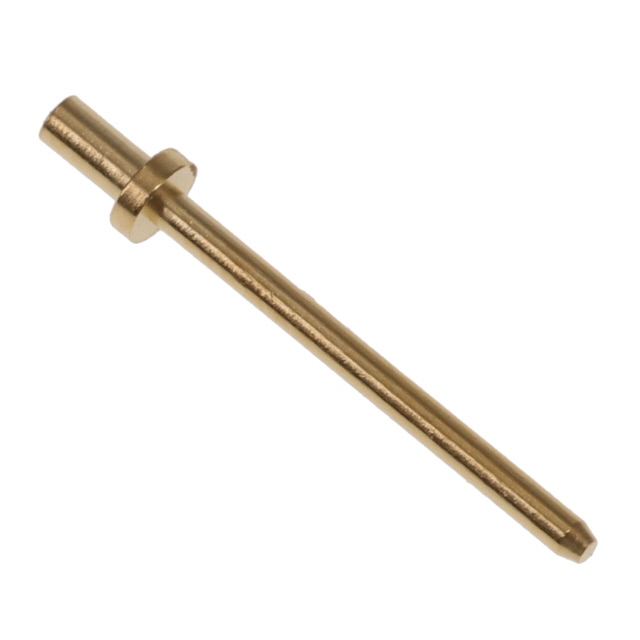

SWAGE TERMINAL PIN
| Part | Termination | Contact Finish | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Insulation | Length - Overall [x] | Length - Overall [x] | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Swage | Gold | Brass Alloy | 0.4 in | 10.16 mm | 0.04 in | 1.02 mm | 2.08 mm | 0.082 " | 0.03 in | 0.76 mm | Non-Insulated | 12.75 mm | 0.502 " | Through Hole | 1.78 mm | 0.07 in | 0.25 Ám | 10 Áin | Single End | PC Pin | 0.043 in | 1.09 mm |
