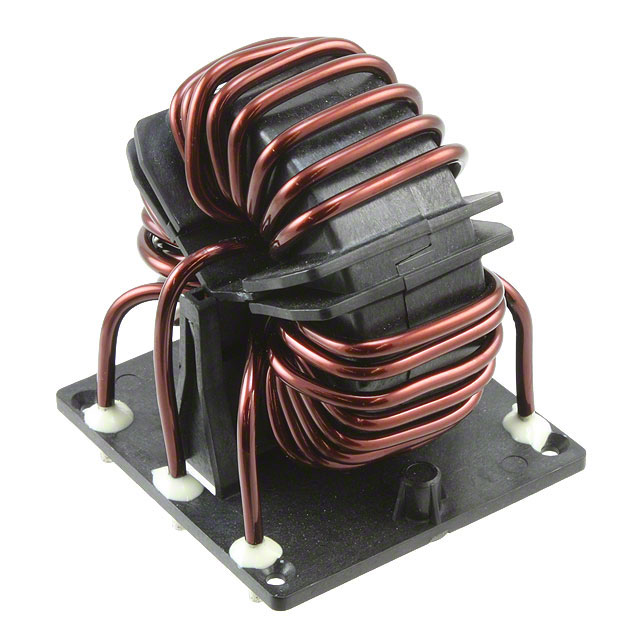

Schaffner RB-Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CMC 420UH 36A 3LN TH

Part	DC Resistance (DCR) (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Voltage Rating - DC	Voltage Rating - DC	Number of Lines	Current Rating (Max) [Max]	Mounting Type	Voltage Rating - AC	Height (Max) [z]	Height (Max) [z]	Package / Case	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Height (Max) [Max] [diameter]	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max) [z]
TE Connectivity AMP Connectors RB6532-36-0M4	1.5 mOhm	2.283 "	62 mm	58 mm	2.441 in	420 µH	1 kV	1 kVDC	3	36 A	Through Hole	600 V	70 mm	2.756 in	Vertical 6 PC Pin	Power Line	125 °C	-40 C
TE Connectivity AMP Connectors RB8522-16-3M0	8.4 mOhm		1.969 in	1.709 in		3 mH 400 Hz	1 kV	1 kVDC	2	16 A	Through Hole	600 V	58 mm		Vertical	Power Line	125 °C	-40 C	2.283 in	43.4 mm	50 mm	8 PC Pad
TE Connectivity AMP Connectors RB6122-36-0M5	1.5 mOhm		61 mm	57.8 mm		450 µH	1 kV	1 kVDC	2	36 A	Through Hole	600 V	38 mm	1.496 in	4 PC Pin Horizontal	Power Line	125 °C	-40 C		2.276 "	2.402 in
TE Connectivity AMP Connectors RB6122-25-0M6	2.7 mOhm		53.29 mm	51.31 mm		400 Hz 640 µH	1 kV	1 kVDC	2	25 A	Through Hole	600 V			4 PC Pin Horizontal	Power Line	125 °C	-40 C		2.02 "	2.098 "		1.634 in	41.5 mm
TE Connectivity AMP Connectors RB8532-36-0M8	2.3 mOhm		76 mm	63 mm		830 µH	1 kV	1 kVDC	3	36 A	Through Hole	600 V			Vertical 6 PC Pin	Power Line	125 °C	-40 C		2.48 in	2.992 in			82 mm	3.228 in
TE Connectivity AMP Connectors RB6522-36-0M5	1.5 mOhm		1.969 in	1.709 in		450 µH	1 kV	1 kVDC	2	36 A	Through Hole	600 V	58 mm		Vertical 4 PC Pin	Power Line	125 °C	-40 C	2.283 in	43.4 mm	50 mm
TE Connectivity AMP Connectors RB6522-36-0M5	1.5 mOhm		1.969 in	1.709 in		450 µH	1 kV	1 kVDC	2	36 A	Through Hole	600 V	58 mm		Vertical 4 PC Pin	Power Line	125 °C	-40 C	2.283 in	43.4 mm	50 mm
TE Connectivity AMP Connectors RB6522-16-1M0	4.6 mOhm		46.9 mm	45 mm		1 mH 400 Hz	1 kV	1 kVDC	2	16 A	Through Hole	600 V			Vertical 4 PC Pin	Power Line	125 °C	-40 C		1.772 in	1.846 in				2.047 in	52 mm
TE Connectivity AMP Connectors RB6532-36-0M4	1.5 mOhm	2.283 "	62 mm	58 mm	2.441 in	420 µH	1 kV	1 kVDC	3	36 A	Through Hole	600 V	70 mm	2.756 in	Vertical 6 PC Pin	Power Line	125 °C	-40 C
TE Connectivity AMP Connectors RB6132-16-0M8	4.6 mOhm		58.8 mm	57.8 mm		400 Hz 800 µH	1 kV	1 kVDC	3	16 A	Through Hole	600 V	1.89 in		4 PC Pin Horizontal	Power Line	125 °C	-40 C		2.276 "	2.315 in						48 mm
