GSF1.1002 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

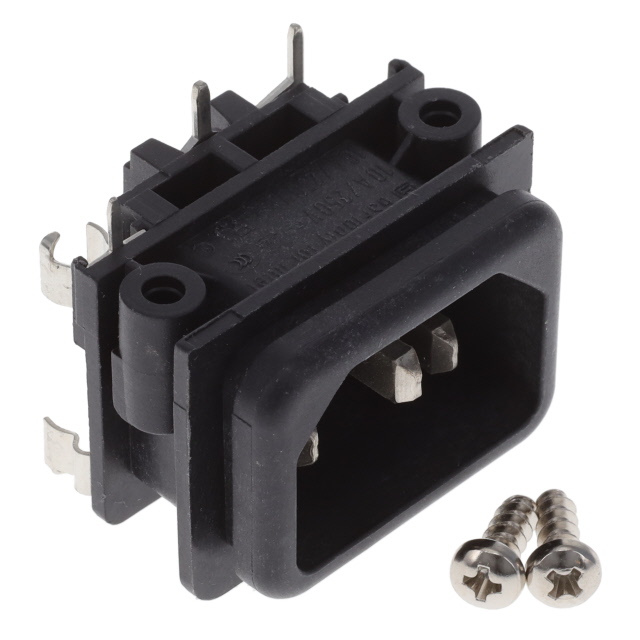

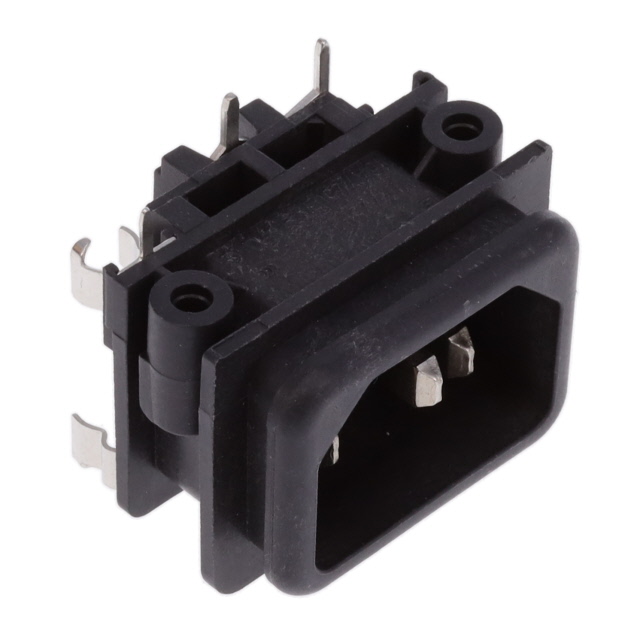

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Current Rating - Appliance Inlet | Panel Thickness | Panel Thickness | Filter Type | Fuse Holder, Drawer | Connector Type | Approval Agency | Accomodates a Fuse | Termination | Mounting Type | Features | Ingress Protection | Material Flammability Rating | Connector Style | Voltage Rating - Appliance Inlet | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 10 A | 0.079 in | 2 mm | Unfiltered - Commercial | Fuse Holder | Receptacle Male Blades - Module | CCC CSA ENEC UL | Solder | Panel Mount Flange Through Hole Right Angle | Mounting Hardware | IP40 | UL94 V-0 | IEC 320-C14 | 250 VAC | 27.7 mm | 19.7 mm | |
 SCHURTER Inc. | 10 A | 0.118 " | 3 mm | Unfiltered - Commercial | Fuse Holder | Receptacle Male Blades - Module | CCC CSA ENEC UL | Solder | Panel Mount Flange Through Hole Right Angle | Mounting Hardware | IP40 | UL94 V-0 | IEC 320-C14 | 250 VAC | 27.7 mm | 19.7 mm |
