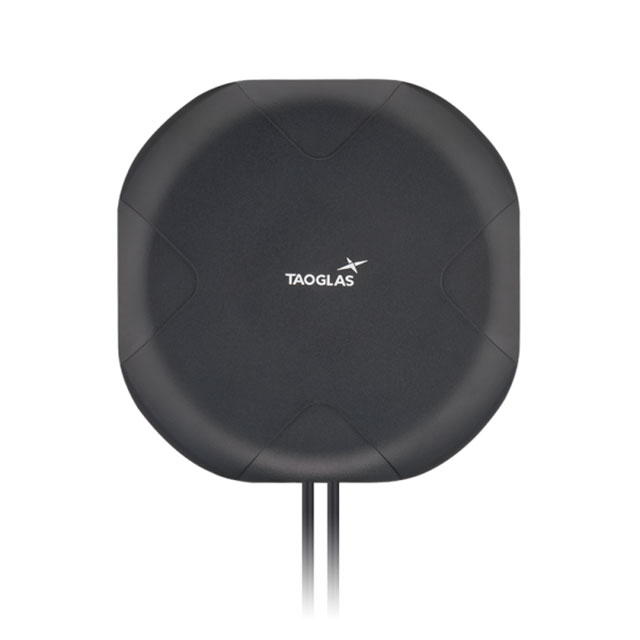

TGX.45.A Series
Manufacturer: Taoglas Limited
Beta
⌘K
WIDEBAND 5G/4G 2*MIMO CROSS POLARIZED ANTENNA WITH MULTI-MOUNT BRACKET
| Part | Frequency Range [Max] | Frequency Range [Min] | Applications | Gain | Frequency (Center/Band) | RF Family/Standard | Frequency Group | Ingress Protection | Power - Max [Max] | Mounting Type | Number of Bands | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taoglas Limited | 6 GHz | 450 MHz | 3G 4G 5G HSPA HSPA+ LTE WCDMA Wi-Fi | -5 dBi -4.3 dBi -4.2 dBi -3.8 dBic -2.9 dBi -2.8 dBi -2.7 dBi -2.6 dBi -2.5 dBi | 1.4725 GHz 1.955 GHz 2.495 GHz 3.75 GHz 5.5375 GHz 450 MHz 657.5 MHz 752 MHz 892 MHz | Cellular | Wide Band | IP65 | 10 W | Glass Pole Wall Mount | 9 | Cable - 3m |
