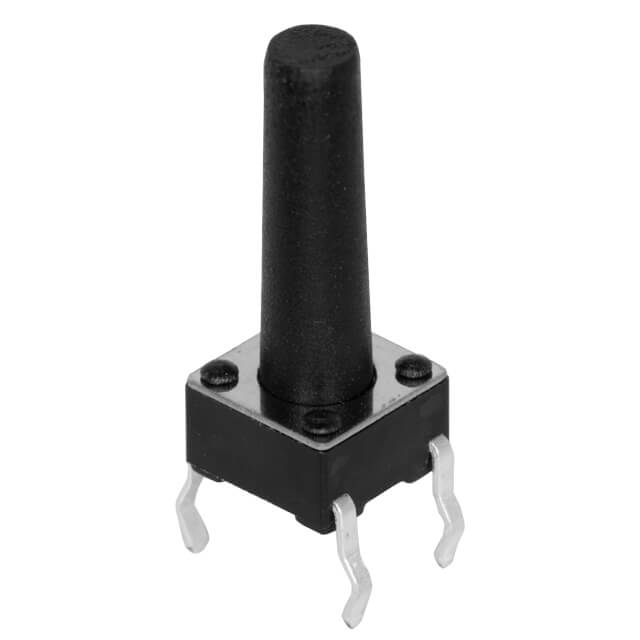

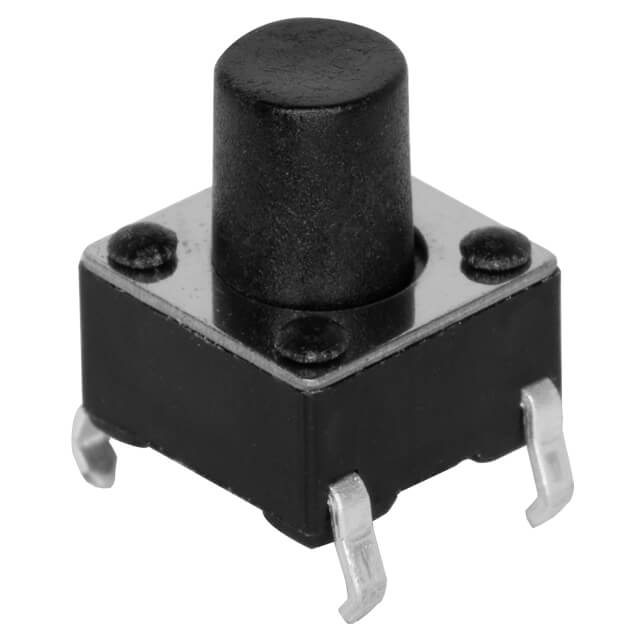

TS02-66 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 2.6N
| Part | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Outline [x] | Outline [y] | Contact Rating @ Voltage | Mounting Type | Mechanical Life | Actuator Type | Illumination | Actuator Material | Circuit | Actuator Height off PCB, Vertical [z] | Switch Function | Switch Travel | Termination Style | Actuator Orientation | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 260 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | 60000 Cycles | Standard | Non-Illuminated | Nylon 6/6 Polyamide (PA66) | SPST-NO | 15.3 mm | Off-Mom | 0.25 mm | PC Pin | Top Actuated | |
 Same Sky (Formerly CUI Devices) | 100 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | Standard | Non-Illuminated | SPST-NO | Off-Mom | PC Pin | Top Actuated | 15 mm | ||||
Same Sky (Formerly CUI Devices) | 160 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | Standard | Non-Illuminated | SPST-NO | 15.3 mm | Off-Mom | PC Pin | Top Actuated | ||||
 Same Sky (Formerly CUI Devices) | 260 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | Standard | Non-Illuminated | SPST-NO | 9.5 mm | Off-Mom | PC Pin | Top Actuated | ||||
Same Sky (Formerly CUI Devices) | 260 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | Standard | Non-Illuminated | SPST-NO | Off-Mom | PC Pin | Top Actuated | 15 mm | ||||
 Same Sky (Formerly CUI Devices) | 160 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | 80000 Cycles | Standard | Non-Illuminated | Nylon 6/6 Polyamide (PA66) | SPST-NO | 17 mm | Off-Mom | 0.25 mm | PC Pin | Top Actuated | |
Same Sky (Formerly CUI Devices) | 100 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | Standard | Non-Illuminated | SPST-NO | Off-Mom | PC Pin | Top Actuated | 8 mm | ||||
 Same Sky (Formerly CUI Devices) | 100 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | Standard | Non-Illuminated | SPST-NO | Off-Mom | PC Pin | Top Actuated | 16 mm | ||||
Same Sky (Formerly CUI Devices) | 160 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | Standard | Non-Illuminated | SPST-NO | 17 mm | Off-Mom | PC Pin | Top Actuated | ||||
 Same Sky (Formerly CUI Devices) | 160 gf | 80 °C | -30 ░C | 6 mm | 6 mm | 0.05 A 12 VDC | Through Hole | 80000 Cycles | Standard | Non-Illuminated | Nylon 6/6 Polyamide (PA66) | SPST-NO | Off-Mom | 0.25 mm | PC Pin | Top Actuated | 8 mm |
