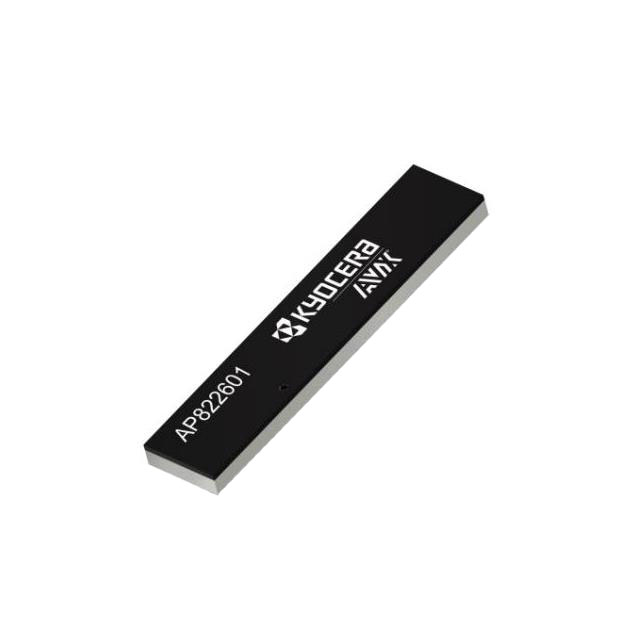

AP822601 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
RF ANTENNA, 3.3 TO 3.8GHZ, FR4 EMBEDDED LTE / LPWA, 2.8DBI, 2W, SMD
| Part | Number of Bands | Frequency (Center/Band) | Frequency Group | RF Family/Standard | Height (Max) [z] | Height (Max) [z] | Gain | Termination | VSWR | Applications | Frequency Range [Min] | Frequency Range [Max] | Power - Max [Max] | Mounting Type | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 5 | 1.955 GHz 2.35 GHz 2.6 GHz 3.55 GHz 829 MHz | Wide Band | Cellular General ISM WiFi | 0.13 in | 3.3 mm | 1.8 dBi 2.6 dBi 2.8 dBi 3.4 dBi 4.4 dBic | Solder | 2.5 3 | ISM LoRaWAN LPWA LTE NB-IoT Sigfox Wi-Fi | 1.71 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz | 2.2 GHz 2.4 GHz 2.7 GHz 3.8 GHz 960 MHz | 2 W | Surface Mount | Chip |
