D2540 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT

Part	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Number of Rows [custom]	Contact Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Color	Contact Shape	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Type	Contact Finish - Post	Features	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Termination	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Style	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post

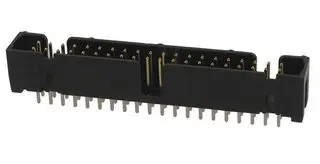

3M Electronic Specialty D2540-6002-AR	UL94 V-0	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	Brass Copper Alloy	0.1 "	2.54 mm	1.75 A	Black	Square	Push-Pull	0.112 in	2.84 mm	0.492 in	12.5 mm	Through Hole	Header	-55 C	105 ░C	Shrouded - 4 Wall	Male Pin	Tin	Keying Slot	All	0.25 µm	10 µin	40	Solder	0.39 in	9.91 mm	Gold	Board to Board Board to Cable/Wire Cable	0.253 "	6.43 mm	39.4 çin	1 çm
