070287 Series

Manufacturer: Molex

Catalog

Catalog

CONN HEADER VERT 38POS 2.54MM

...

Part	Number of Rows	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Termination	Insulation Color	Mounting Type	Connector Type	Contact Material	Shrouding	Material Flammability Rating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Applications	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Type	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Length - Mating
Molex 0702871213	2	38	Gold	30 Áin	0.76 Ám	2.54 mm	0.1 in	11.56 mm	0.455 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	6.1 mm	0.24 in	74.8 Áin	1.9 Ám	Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm
Molex 0702871278	2	70	Gold	30 Áin	0.76 Ám	2.54 mm	0.1 in	13.59 mm	0.535 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	8.13 mm		74.8 Áin	1.9 Ám	Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm	0.32 in
Molex 0702871211	2	34	Gold	30 Áin	0.76 Ám	2.54 mm	0.1 in	11.56 mm	0.455 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	6.1 mm	0.24 in	74.8 Áin	1.9 Ám	Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm
Molex 0702871264	2	42	Gold	30 Áin	0.76 Ám	2.54 mm	0.1 in	13.59 mm	0.535 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	8.13 mm		74.8 Áin	1.9 Ám	Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm	0.32 in
Molex 0702871190	2	90	Gold	15 µin	0.38 µm	2.54 mm	0.1 in	13.59 mm	0.535 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	8.13 mm		74.8 Áin	1.9 Ám	Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm	0.32 in
Molex 0702871008	2	20		150 Áin	3.81 Ám	2.54 mm	0.1 in	11.56 mm	0.455 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	6.1 mm	0.24 in			Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm
Molex 0702871287	2	88	Gold	30 Áin	0.76 Ám	2.54 mm	0.1 in	13.59 mm	0.535 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	8.13 mm		74.8 Áin	1.9 Ám	Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm	0.32 in

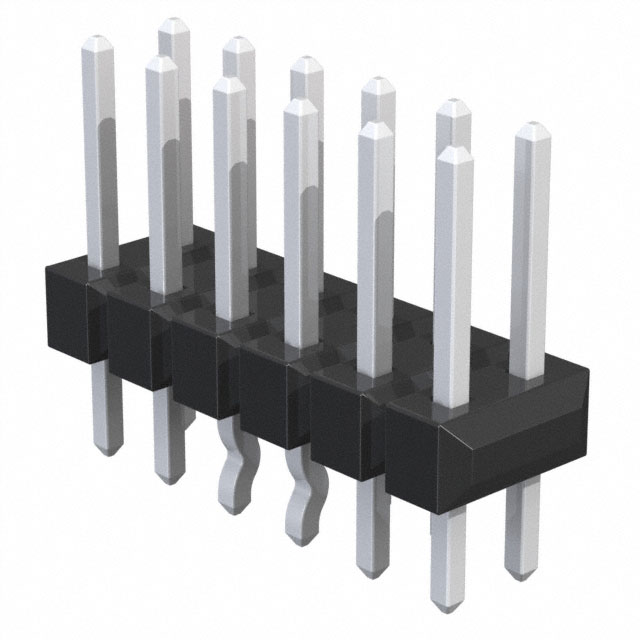

Molex 0702871004	2	12		150 Áin	3.81 Ám	2.54 mm	0.1 in	11.56 mm	0.455 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	6.1 mm	0.24 in			Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm
Molex 0702871128	2	64	Gold	15 µin	0.38 µm	2.54 mm	0.1 in	11.56 mm	0.455 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	6.1 mm	0.24 in	74.8 Áin	1.9 Ám	Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm
Molex 0702871058	2	22 positions		150 Áin	3.81 Ám	2.54 mm	0.1 in	13.59 mm	0.535 in	Kinked Pin Solder	Black	Through Hole	Breakaway Header	Copper Alloy	Unshrouded	UL94 V-0	Board to Board Cable	3.18 mm	0.125 in	Automotive General Purpose Lighting Medical Telecommunications	All	8.13 mm				Push-Pull	Male Pin	Square	0.09 in	2.29 mm	Tin	0.1 in	2.54 mm	0.32 in
