5511 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSH SPDT 0.3A 12V

Part	Mechanical Life	Color - Actuator/Cap	Actuator Marking	Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Voltage Rating - DC	Mounting Type	Switch Function	Current Rating (Amps)	Termination Style	Circuit	Illumination Type, Color	Actuator Type
E-Switch 5511MBLKYEL	500000 Cycles	Black	No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	LED Yellow	Button Square
E-Switch 5511MGRNX	500000 Cycles	Green	No Marking	Keyswitch	-25 °C	65 °C		12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT		Button Square
E-Switch 5511MREDRED	500000 Cycles	Red	No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	LED Red	Button Square
E-Switch 5511MGRYYELGRN	500000 Cycles		No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	Green/Yellow LED	Button Square
E-Switch 5511MWHTGRN	500000 Cycles	White	No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	Green LED	Button Square
E-Switch 5511M1X	500000 Cycles	Black	No Marking	Keyswitch	-25 °C	65 °C		12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT		Button Square
E-Switch 5511MBLKYELRED	500000 Cycles	Black	No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	LED Red Yellow	Button Square

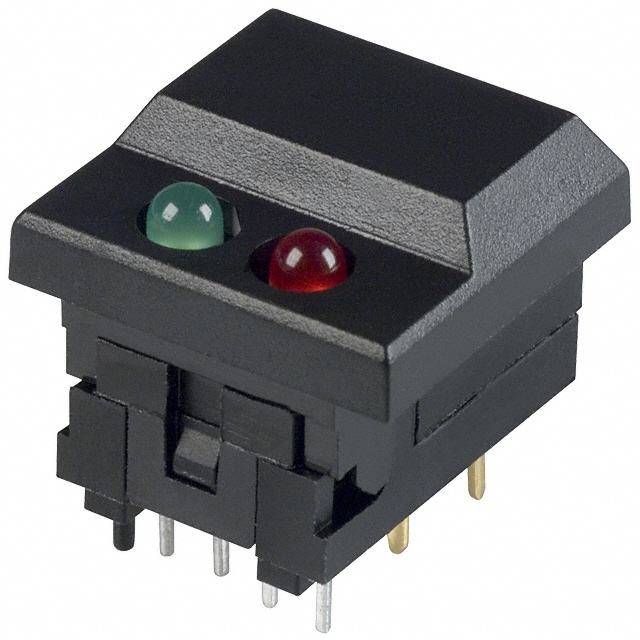

E-Switch 5511MBLKREDGRN	500000 Cycles	Black	No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	Green/Red LED	Button Square

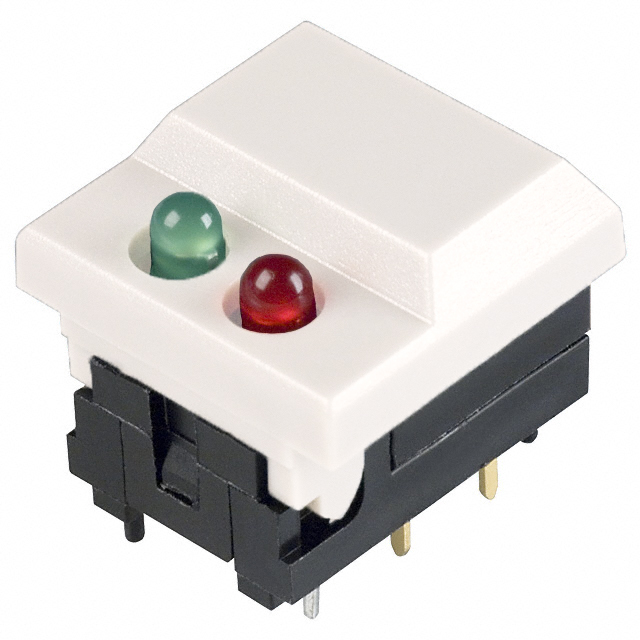

E-Switch 5511MWHTREDGRN	500000 Cycles	White	No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	Green/Red LED	Button Square
E-Switch 5511MREDREDGRN	500000 Cycles	Red	No Marking	Keyswitch Illuminated	-25 °C	65 °C	2.2 VDC	12 V	Through Hole	On-Mom	300 mA	PC Pin	SPDT	Green/Red LED	Button Square
