PD10B3 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

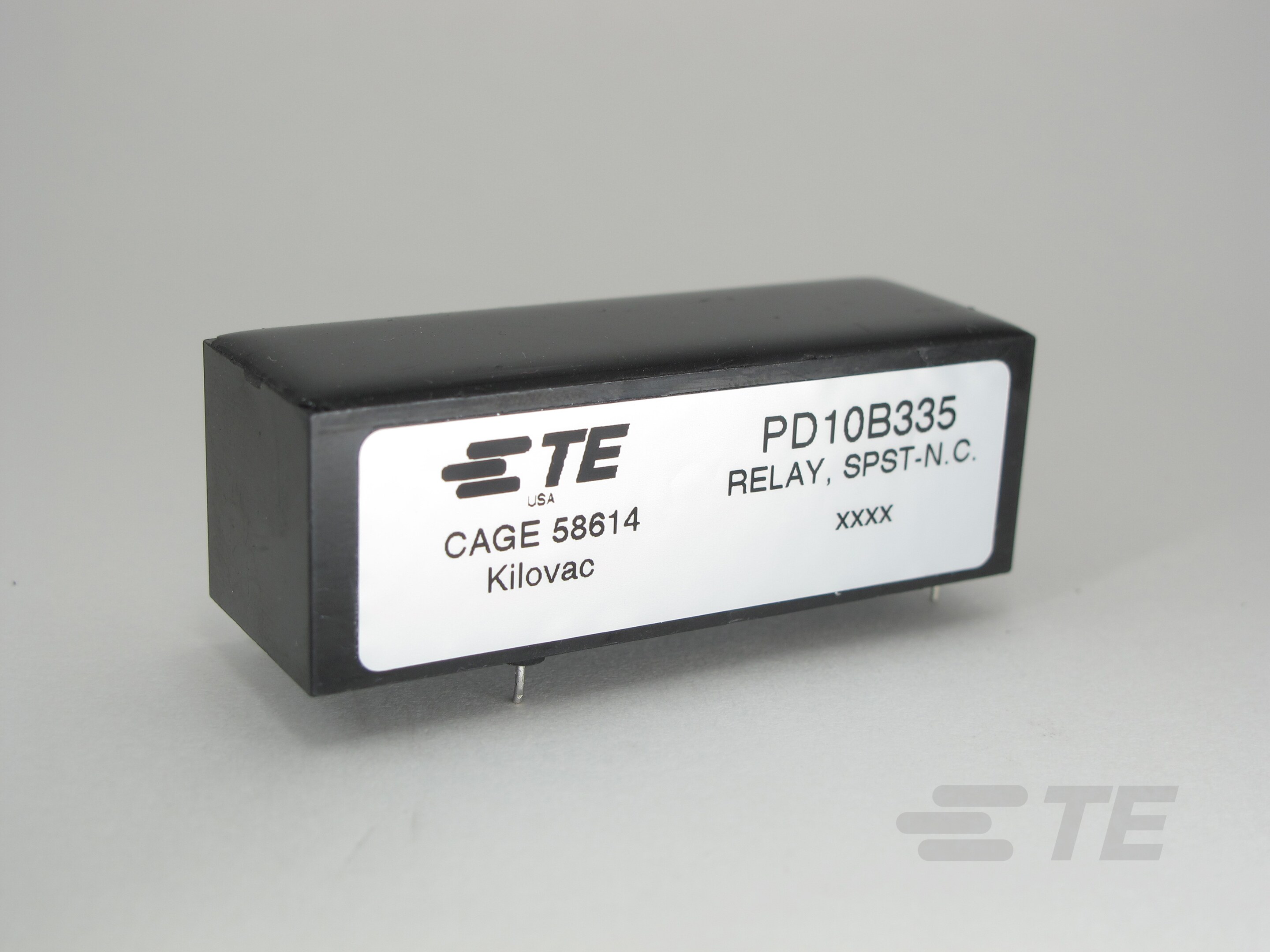

PD10B335=RELAY, VACUUM, SPST-N
| Part | Coil Resistance | Relay Type | Mounting Type | Coil Type | Contact Rating (Current) | Contact Form | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Load - Max Switching | Release Time | Must Release Voltage | Coil Current | Must Operate Voltage | Switching Voltage [Max] | Operate Time | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 70 Ohms | General Purpose | Panel Mount | Non Latching | 10 A | SPST-NC (1 Form B) | PC Pin | -35 °C | 65 °C | 12 VDC | 3200 VA | 10 ms | 6 VDC | 171.4 mA | 8 VDC | 320 VDC | 10 ms | Sealed - Vacuum |
