293 Series

Catalog

CAP TANT SOLID 2.2UF 25V A CASE 20%( 3.2 X 1.6 X 1.6MM) INWARD L SMD 3216-18 6.3 OHM 125°C T/R

Part	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Package / Case	Type	Features	Voltage - Rated	ESR (Equivalent Series Resistance)	Capacitance	Tolerance	Manufacturer Size Code	Package Diameter	Package Name
Vishay Dale 293D225X0025A2TE3	0.071 in	0.063 in	0.126 in	125 °C	-55 °C	Surface Mount	1206 (3216 Metric)	Molded	General Purpose	25 VAC	6.3 Ohm	2.2 µF	20 %	A

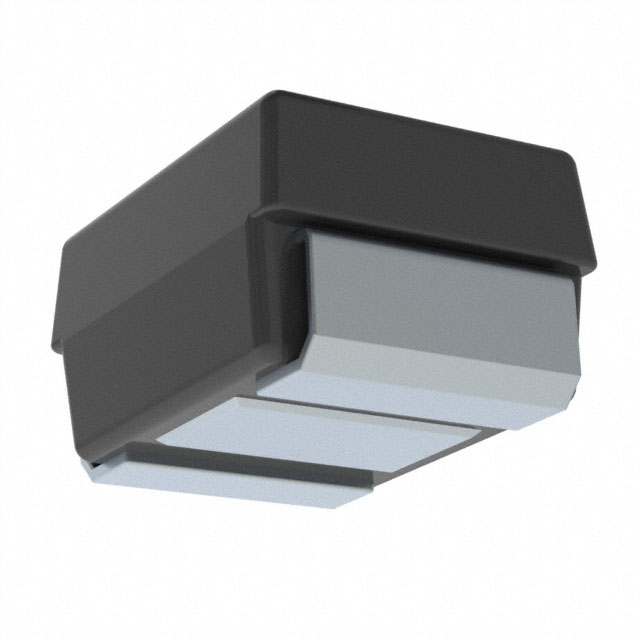

Vishay Dale 293D686X0004B2TE3	0.083 in	0.11 in	0.138 in	125 °C	-55 °C	Surface Mount	1411 (3528 Metric)	Molded	General Purpose	4 V	1.9 Ohm	68 µF	20 %	B	3528 mm	1411
Vishay Dale 293D336X0004A2TE3	0.071 in	0.063 in	0.126 in	125 °C	-55 °C	Surface Mount	1206 (3216 Metric)	Molded	General Purpose	4 V	2.9 Ohm	33 µF	20 %	A
Vishay Dale 293D105X0010A2TE3	0.071 in	0.063 in	0.126 in	125 °C	-55 °C	Surface Mount	1206 (3216 Metric)	Molded	General Purpose	10 V	9.6 Ohm	1 µF	20 %	A

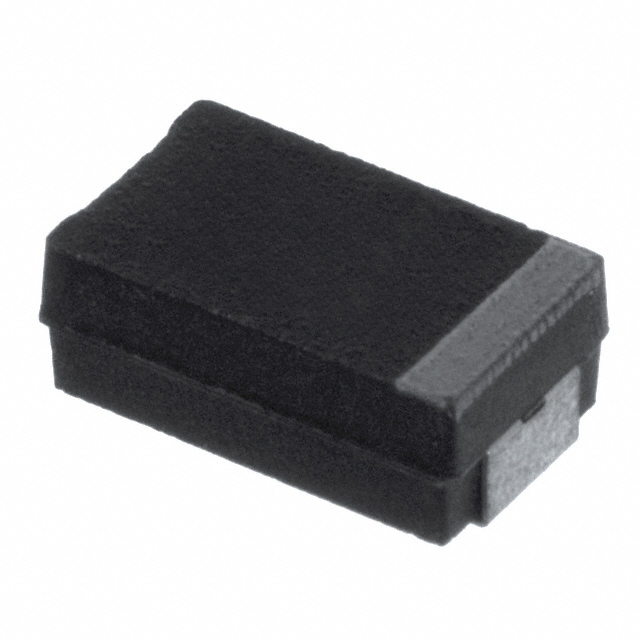

Vishay Dale 293D156X0016C2TE3	0.11 in	0.126 in	0.236 in	125 °C	-55 °C	Surface Mount	2312 (6032 Metric)	Molded	General Purpose	16 V	1.5 Ohm	15 µF	20 %	C
Vishay Dale 293D157X0004C2TE3
Vishay Dale 293D226X06R3C2TE3	0.11 in	0.126 in	0.236 in	125 °C	-55 °C	Surface Mount	2312 (6032 Metric)	Molded	General Purpose	6.3 V	1.8 Ohm	22 µF	20 %	C
Vishay Dale 293D686X06R3B2TE3	0.083 in	0.11 in	0.138 in	125 °C	-55 °C	Surface Mount	1411 (3528 Metric)	Molded	General Purpose	6.3 V	1.8 Ohm	68 µF	20 %	B	3528 mm	1411
Vishay Dale 293D107X06R3C2TE3	0.11 in	0.126 in	0.236 in	125 °C	-55 °C	Surface Mount	2312 (6032 Metric)	Molded	General Purpose	6.3 V	800 mOhm	100 µF	20 %	C
Vishay Dale 293D335X0020B2TE3	0.083 in	0.11 in	0.138 in	125 °C	-55 °C	Surface Mount	1411 (3528 Metric)	Molded	General Purpose	20 V	3 Ohm	3.3 µF	20 %	B	3528 mm	1411
