395-050 Series
Manufacturer: EDAC Inc.
Beta
⌘K

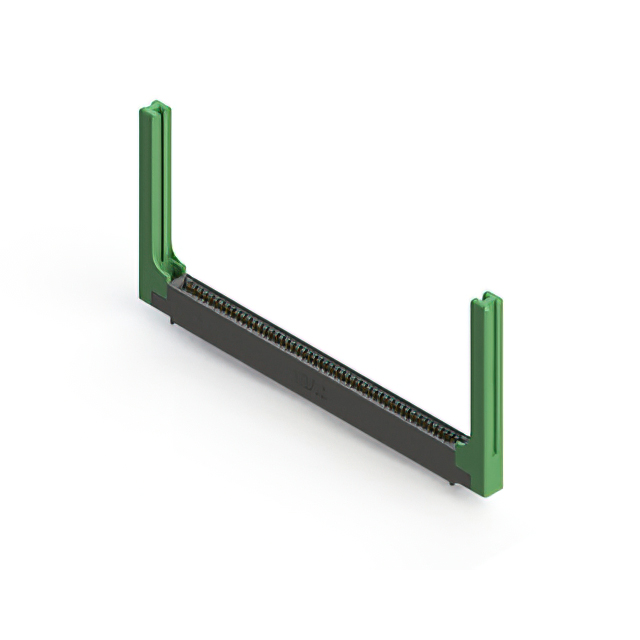

CONN EDGE DUAL FMALE 50POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Termination | Card Type | Contact Finish Thickness | Contact Finish Thickness | Color | Mounting Type | Pitch | Pitch | Number of Positions/Bay/Row | Contact Type | Number of Positions | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

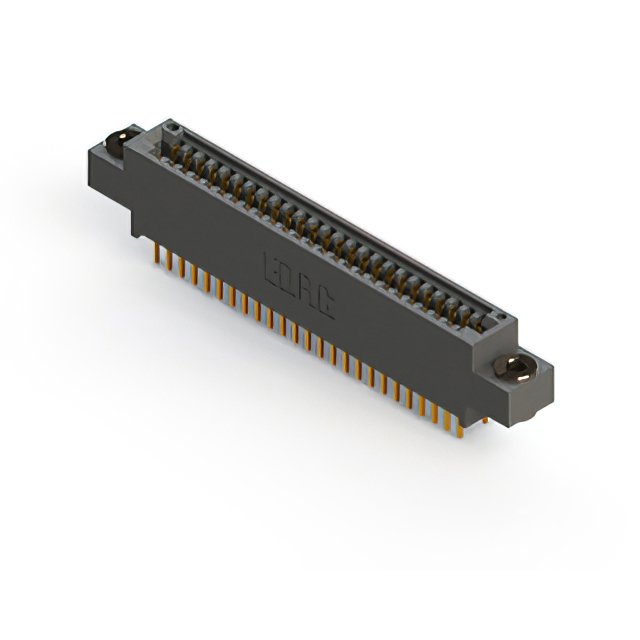

 EDAC Inc. | 2 | Polyester Thermoplastic | Wire Wrap | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 25 | Cantilever | 50 | 2 | -40 C | 105 ░C | Female | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Solder | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 50 | Cantilever | 50 | -40 C | 105 ░C | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Wire Wrap | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 50 | Cantilever | 50 | -40 C | 105 ░C | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 1 | 1 | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | Solder | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 50 | Cantilever | 50 | -40 C | 105 ░C | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Wire Wrap | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 50 | Cantilever | 50 | -40 C | 105 ░C | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | Wire Wrap | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 50 | Cantilever | 50 | -40 C | 105 ░C | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 1 | 1 | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Black | Board Edge Straddle Mount | 0.1 " | 2.54 mm | 25 | Cantilever | 50 | 2 | -40 C | 105 ░C | Female | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Solder | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Black | Right Angle Through Hole | 0.1 " | 2.54 mm | 25 | Cantilever | 50 | 2 | -40 C | 105 ░C | Female | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Solder | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 50 | Cantilever | 50 | -40 C | 105 ░C | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Wire Wrap | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Black | Through Hole | 0.1 " | 2.54 mm | 25 | Cantilever | 50 | 2 | -40 C | 105 ░C | Female | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | 0.128 " | 3.25 mm |
