SDCH Series

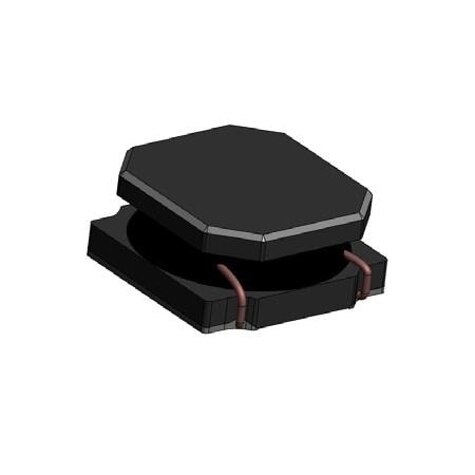

Power Inductors - SMD SDCH1V5020, 1.0nH, 4.33A, 2 PADS, SMT
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD SDCH1V5020, 1.0nH, 4.33A, 2 PADS, SMT
Beta
⌘K
Power Inductors - SMD SDCH1V5020, 1.0nH, 4.33A, 2 PADS, SMT
Power Inductors - SMD SDCH1V5020, 1.0nH, 4.33A, 2 PADS, SMT
Power Inductors - SMD SDCH1V5020, 1.0nH, 4.33A, 2 PADS, SMT
| Part | Inductance Frequency - Test | Mounting Type | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | DC Resistance (DCR) [Max] | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Package / Case | Material - Core | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 100 kHz | Surface Mount | 4.33 A | 125 °C | -40 C | Shielded | 26 mOhm | 4.2 A | 0.197 in | 0.197 " | 5 mm | 5 mm | 0.079 in | 2 mm | 30 % | Nonstandard | Ferrite | 1 µH |
