OA109LF Series
Manufacturer: ORION FANS
Beta
⌘K

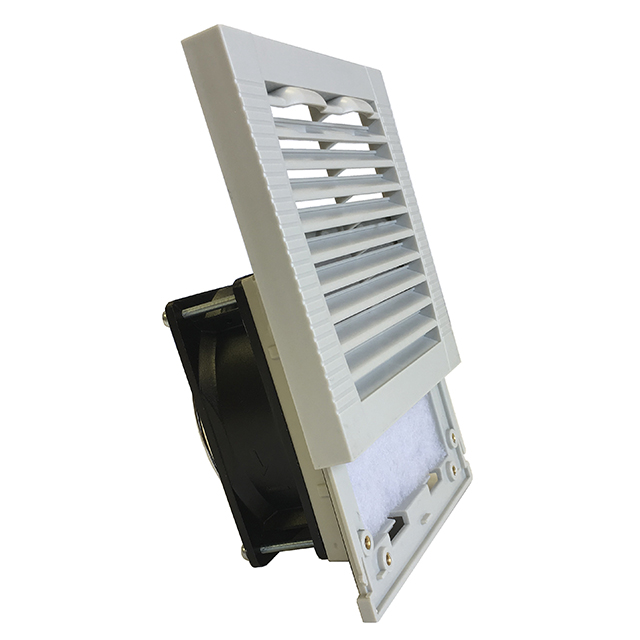

AC FANS LOUVERED FILTER FAN SLIDE GUARD KIT WITH 172MM, 230VAC, 106CFM, 15W, 46DBA, IP54
| Part | Lifetime @ Temp. | Material - Blade | Material - Frame | Termination | Width [y] | Approval Agency | Power (Watts) | Features | RPM | Noise | Air Flow | Air Flow | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Voltage - Rated | Ingress Protection | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 40000 Hrs | Polybutylene Terephthalate (PBT) | Aluminum | 2 | 76.8 mm | cURus TUV | 15 W | Kit | 3100 RPM | 46 dB(A) | 106 CFM | 2.97 m³/min | 156 mm | 156 mm | Ball | 79.7 Pa | 0.32 in H2O | -20 ░C | 70 °C | Tubeaxial | 230 VAC | IP55 - Dust Protected Water Resistant | |
 ORION FANS | 40000 Hrs | Polybutylene Terephthalate (PBT) | Aluminum | 2 | 76.5 mm | cURus TUV | 12 W | Kit | 3100 RPM | 46 dB(A) | 106 CFM | 2.97 m³/min | 148.5 mm | Ball | 79.7 Pa | 0.32 in H2O | -20 ░C | 70 °C | Tubeaxial | 115 VAC | IP55 - Dust Protected Water Resistant | 148.5 mm | |
ORION FANS | 40000 Hrs | Polybutylene Terephthalate (PBT) | Aluminum | 2 | 76.8 mm | cURus TUV | 12 W | Kit | 3100 RPM | 46 dB(A) | 106 CFM | 2.97 m³/min | 156 mm | 156 mm | Ball | 79.7 Pa | 0.32 in H2O | -20 ░C | 70 °C | Tubeaxial | 115 VAC | IP55 - Dust Protected Water Resistant |
