AS2D-5M Series

Catalog

SLIDE SWITCH, HYPER-MINIATURE, DPDT, ON-ON, THROUGH HOLE, AS SERIES, 50 MA, 48 V

Part	Voltage Rating - AC	Voltage Rating - DC	Switch Travel [custom]	Contact Timing	Actuator Type	Circuit	Switch Function	Actuator Length [x]	Operating Force [Max]	Operating Force [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Termination Style	Contact Finish	Electrical Life

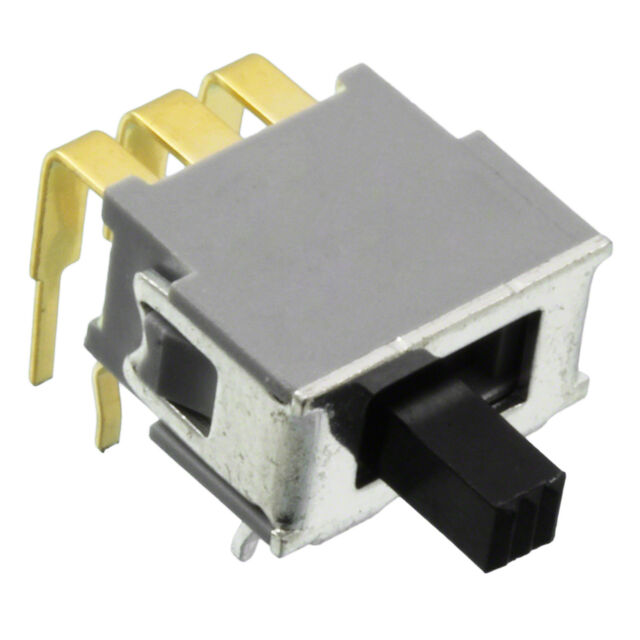

Nidec Components Corporation AS2D-5M-10-Z	48 V	48 V	2.2 mm	Non-Shorting	Standard	DPDT	On-On	4.3 mm	500 gf	70 gf	85 °C	-20 C	Through Hole Right Angle	50 mA	PC Pin	Gold	10000 Cycles
