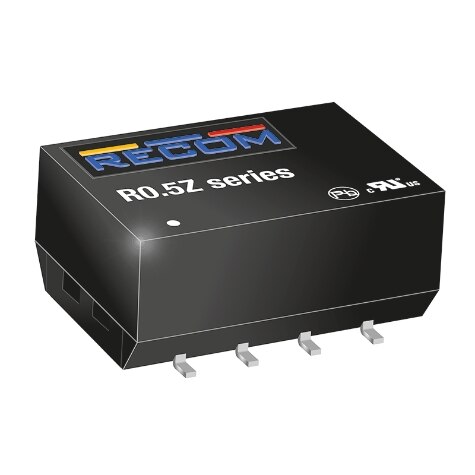

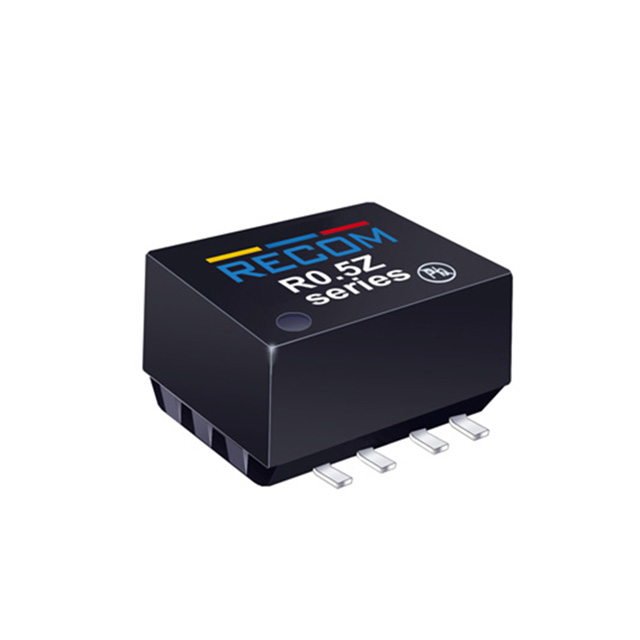

R0.5Z Series
Manufacturer: Recom Power
Beta
⌘K
0.5W DC/DC-CONVERTER ECONOLINE SMD 1KV REG ROHS COMPLIANT: YES
| Part | Voltage - Output 1 | Voltage - Isolation | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Package / Case | Applications | Features | Mounting Type | Current - Output (Max) [Max] | Type | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 15 V | 1000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 15.75 V | 14.25 V | 10-SMD Module 6 Leads | ITE (Commercial) | SCP | Surface Mount | 33 mA | Isolated Module | 0.5 W | -40 C | 100 °C | 62 % |
Recom Power | 5 V | 2000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 5.25 V | 4.75 V | 10-SMD Module 6 Leads | ITE (Commercial) Medical | SCP | Surface Mount | 100 mA | Isolated Module | 0.5 W | -40 C | 85 °C | 55 % |
Recom Power | 5 V | 2000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 25.2 V | 22.8 V | 10-SMD Module 6 Leads | ITE (Commercial) Medical | SCP | Surface Mount | 100 mA | Isolated Module | 0.5 W | -40 C | 85 °C | 55 % |
 Recom Power | 5 V | 2000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 25.2 V | 22.8 V | 10-SMD Module 6 Leads | ITE (Commercial) Medical | SCP | Surface Mount | 100 mA | Isolated Module | 0.5 W | -40 C | 85 °C | 55 % |
Recom Power | 5 V | 1000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 12.6 V | 11.4 V | 10-SMD Module 6 Leads | ITE (Commercial) | SCP | Surface Mount | 100 mA | Isolated Module | 0.5 W | -40 C | 100 °C | 50 % |
Recom Power | 5 V | 2000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 5.25 V | 4.75 V | 10-SMD Module 6 Leads | ITE (Commercial) Medical | SCP | Surface Mount | 100 mA | Isolated Module | 0.5 W | -40 C | 85 °C | 55 % |
Recom Power | 15 V | 1000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 5.25 V | 4.75 V | 10-SMD Module 6 Leads | ITE (Commercial) | SCP | Surface Mount | 33 mA | Isolated Module | 0.5 W | -40 C | 100 °C | 62 % |
Recom Power | 15 V | 1000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 25.2 V | 22.8 V | 10-SMD Module 6 Leads | ITE (Commercial) | SCP | Surface Mount | 33 mA | Isolated Module | 0.5 W | -40 C | 100 °C | 62 % |
Recom Power | 12 V | 2000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 12.6 V | 11.4 V | 10-SMD Module 6 Leads | ITE (Commercial) Medical | SCP | Surface Mount | 42 mA | Isolated Module | 0.5 W | -40 C | 85 °C | 64 % |
 Recom Power | 12 V | 1000 V | 1 | 7 mm | 0.42 " | 10.7 mm | 0.6 " | 0.28 " | 15.2 mm | 25.2 V | 22.8 V | 10-SMD Module 6 Leads | ITE (Commercial) | SCP | Surface Mount | 42 mA | Isolated Module | 0.5 W | -40 C | 100 °C | 60 % |
