Bipolar Module-Thyristor/Diode Y4
Description
AI
The Thyristor-Diode Modules Portfolio offers various packages and breakdown voltages up to 2200V.
Beta
⌘K
Bipolar Module-Thyristor/Diode Y4
Bipolar Module-Thyristor/Diode Y4
| Part | Current - Non Rep. Surge 50, 60Hz (Itsm) | Operating Temperature [Min] | Operating Temperature [Max] | Current - On State (It (AV)) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Package / Case | Structure | Current - On State (It (RMS)) (Max) [Max] | Current - Hold (Ih) (Max) [Max] | Number of SCRs, Diodes | Mounting Type | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

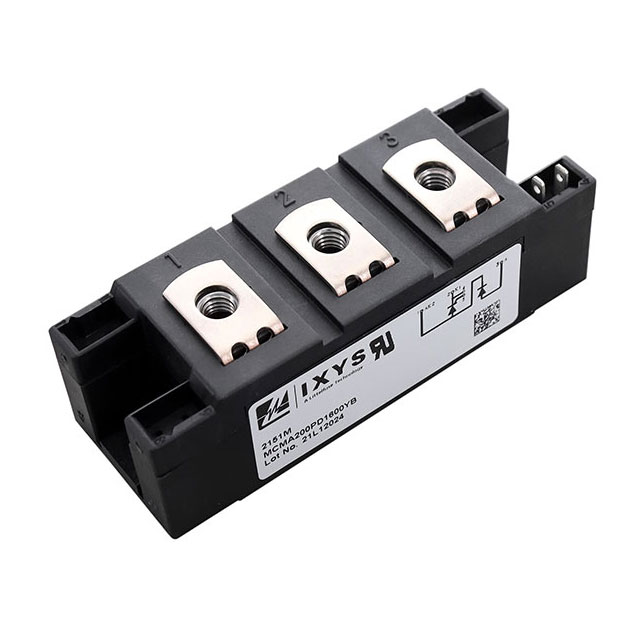

 LITTELFUSE | 6000 A 6480 A | -40 °C | 140 °C | 200 A | 150 mA | Module | Series Connection - SCR/Diode | 315 A | 200 mA | 1 Diode | Chassis Mount | 1.6 kV | 2.5 V |
