BGC89 Series
Manufacturer: TE Intercontec
Beta
⌘K

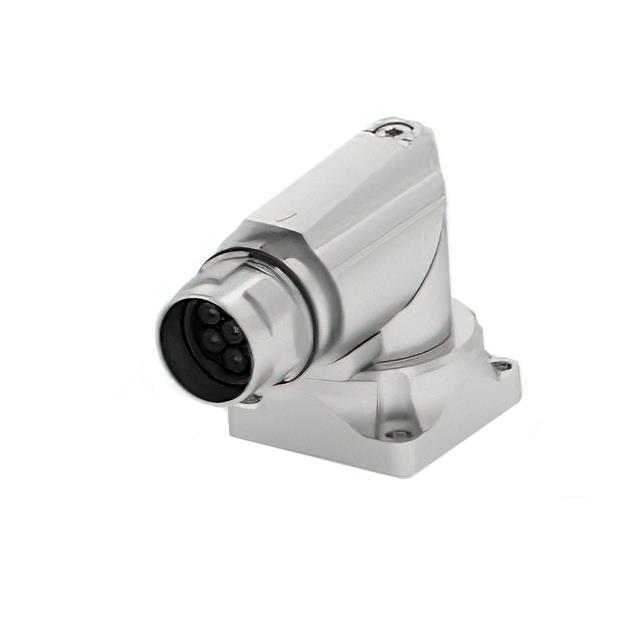

CONN RCPT HSG MALE 4P PNL MT RA
| Part | Includes Total Count | Includes | Fastening Type | Insert Material | Shell Size - Insert | Mounting Feature | Shell Finish | Number of Positions | Position Types | Contact Shape | Shell Material | Mounting Type | Ingress Protection Description | Ingress Protection IP Rating | Housing Color | Features | Orientation | Shielding | Material Flammability Rating | Note | Type | Operating Temperature (Min) | Operating Temperature (Max) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | 3 pcs | Backshell Connector O-Ring | Push-Twist | PBT Polybutylene Terephthalate | M17-4 | Flange | Chromate | 4 | PE Power | Circular | Zinc Die Cast | Panel Mount Right Angle | Dust Tight Water Resistant Waterproof | IP66 IP67 | Silver | Backshell Rotatable | Keyed | Unshielded | UL94 V-0 | Contacts Not Included | For Male Pins | -20 °C | 130 °C | Receptacle Housing |
