SA20304 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

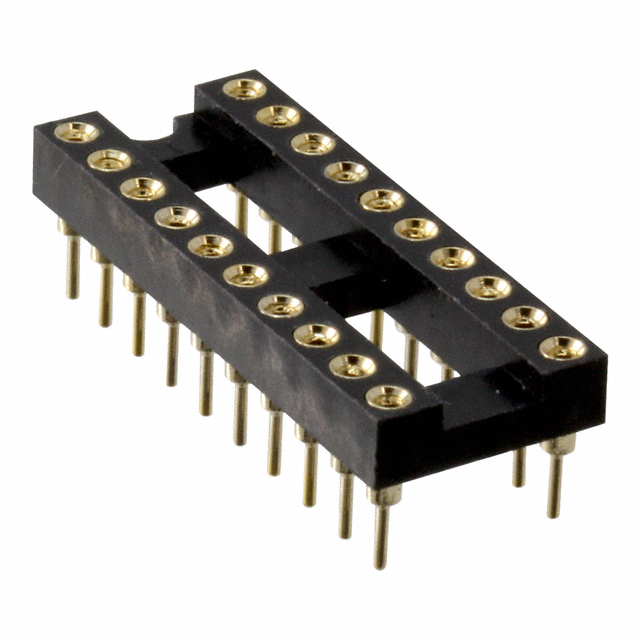

CONN IC DIP SOCKET 20POS GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Type | Type | Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions or Pins (Grid) | Contact Finish - Post | Contact Material - Post [custom] | Termination | Contact Material - Mating | Mounting Type | Housing Material | Contact Finish - Mating | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Features | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 3 A | 4 mOhm | -40 C | 105 ░C | 7.62 mm | 0.3 in | DIP | 2.03 µm | 80 µin | 20 | Gold | Brass | Solder | Beryllium Copper | Through Hole | Glass Filled Polyester Thermoplastic | Gold | 0.1 in | 2.54 mm | Flash | Open Frame | 0.1 " | 2.54 mm |
