78392 Series

Catalog

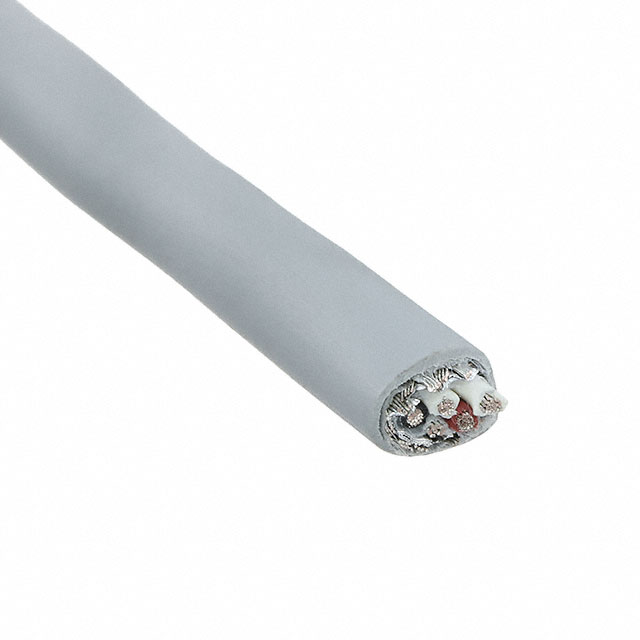

MULTI-PAIR 4COND 20AWG

Part	Shield Coverage	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Number of Conductors	Shield Type	Jacket Color	Wire Gauge	Voltage	Conductor Material	Conductor Insulation	Ratings	Length	Length	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Features	Length [x]	Length [x]
ALPHA WIRE 78392 SL001	100 %	Copper Tinned Suprashield®	80 °C	-40 C	0.381 mm	0.015 in	4	Braid Foil	Slate	20 AWG	300 VDC	Copper Tinned	Polyphenylene Ether Modified (mPPE)	ISO 10993 UL Style 21460	304.8 m	1000 ft	Polyphenylene Ether Modified (mPPE)	19	32 AWG	Multi-Pair	Biological Compatibility Drain Wire Rip Cord
ALPHA WIRE 78392 SL005	100 %	Copper Tinned Suprashield®	80 °C	-40 C	0.381 mm	0.015 in	4	Braid Foil	Slate	20 AWG	300 VDC	Copper Tinned	Polyphenylene Ether Modified (mPPE)	ISO 10993 UL Style 21460			Polyphenylene Ether Modified (mPPE)	19	32 AWG	Multi-Pair	Biological Compatibility Drain Wire Rip Cord	100 ft	30.5 m
ALPHA WIRE 78392 SL199	100 %	Copper Tinned Suprashield®	80 °C	-40 C	0.381 mm	0.015 in	4	Braid Foil	Slate	20 AWG	300 VDC	Copper Tinned	Polyphenylene Ether Modified (mPPE)	ISO 10993 UL Style 21460			Polyphenylene Ether Modified (mPPE)	19	32 AWG	Multi-Pair	Biological Compatibility Drain Wire Rip Cord	1 '	300 mm
