SM12B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

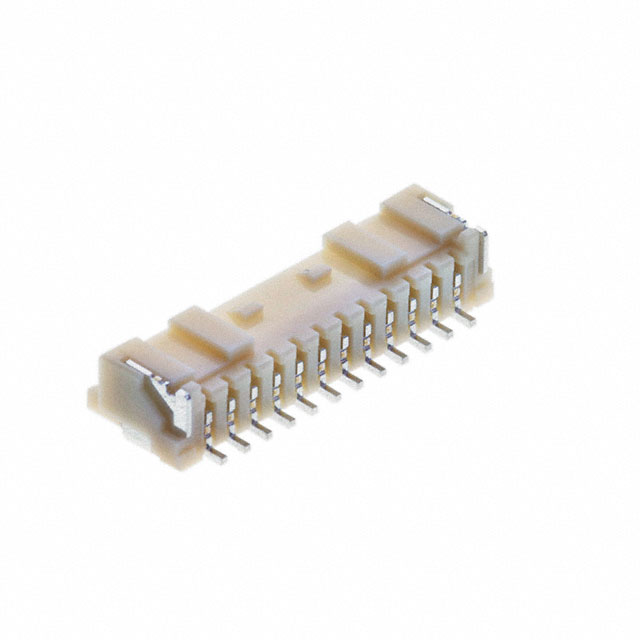

CONN HEADER SMD R/A 12POS 2MM
| Part | Number of Positions | Termination | Insulation Material | Material Flammability Rating | Contact Shape | Shrouding | Mounting Type | Contact Material | Voltage Rating | Fastening Type | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Pitch - Mating | Pitch - Mating | Features | Style | Number of Positions Loaded | Number of Rows | Insulation Height [z] | Insulation Height [z] | Connector Type | Current Rating (Amps) | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 12 | Solder | Nylon Polyamide (PA) | UL94 V-0 | Square | Shrouded - 4 Wall | Right Angle Surface Mount | Copper Alloy | 250 V | Locking Ramp | Tin | 85 °C | -25 °C | Natural | 0.079 " | 2 mm | Pick and Place Solder Retention | Board to Cable/Wire | All | 1 | 5.69 mm | 0.224 in | Header | 3 A | Male Pin |
