R16107 Series

Catalog

N / STRAIGHT PLUG FULL CRIMP TYP

Part	Mating Cycles	Body Material	Insertion Loss	Voltage Rating	Dielectric Material	Body Finish	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Ports	Cable Group	Cable Group	Fastening Type	Housing Color	Frequency - Max [Max]	Connector Style	Mounting Type	Shield Termination	Center Contact Material	Contact Termination	Impedance	Ingress Protection	Includes
Radiall USA, Inc. R161075000W	500	Brass	0.15 dB	1400 V	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 C	-55 C	Plug Male Pin	1	213	RG-165	Threaded	Silver	11 GHz	N Type	Free Hanging (In-Line)	Crimp	Brass	Crimp	50 Ohms
Radiall USA, Inc. R161075060W	500	Brass	0.15 dB	1400 V	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 C	-55 C	Plug Male Pin	1		LMR-400	Threaded	Silver	11 GHz	N Type	Free Hanging (In-Line)	Crimp	Brass	Crimp	50 Ohms	IP65 - Dust Tight Water Resistant

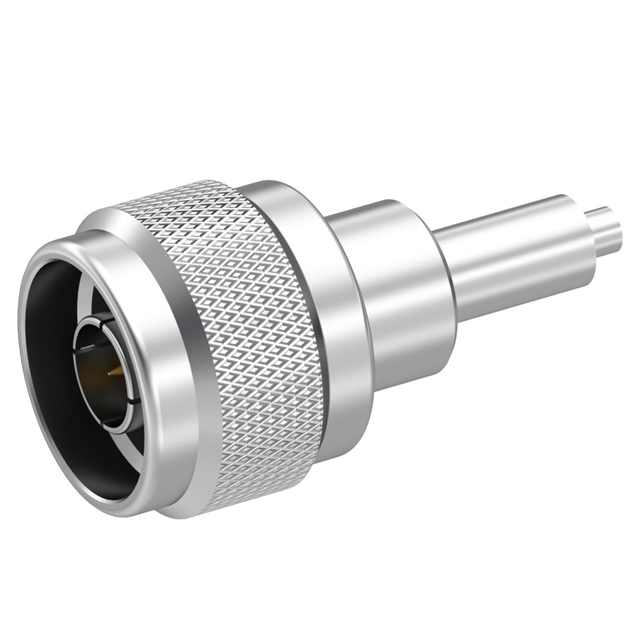

Radiall USA, Inc. R161072000	500	Brass		250 V	Polytetrafluoroethylene (PTFE)		Gold	155 C	-55 C	Plug Male Pin	1		316 RD-316 RG-174	Threaded		11 GHz	N Type	Free Hanging (In-Line)	Crimp	Brass	Crimp	50 Ohms		1 Braid Clamp 1 Connector 1 Contact 1 Ferrule 1 Insulator

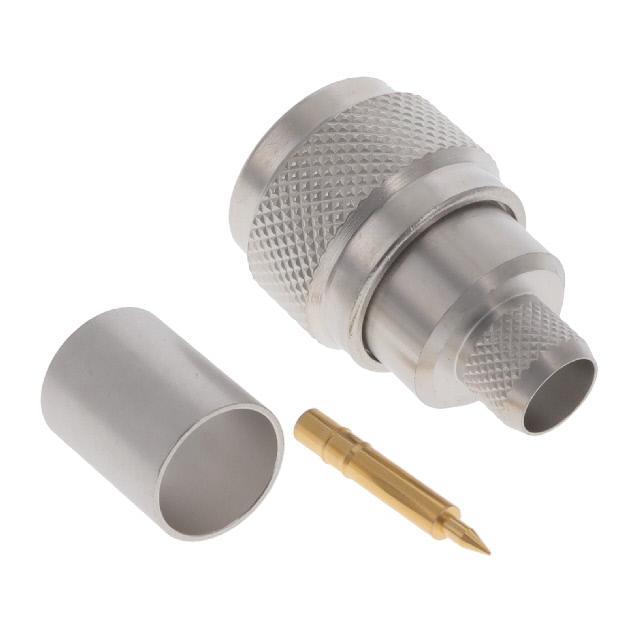

Radiall USA, Inc. R161075060	500	Brass	0.15 dB	1400 V	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 C	-55 C	Plug Male Pin	1		LMR-400	Threaded	Silver	11 GHz	N Type	Free Hanging (In-Line)	Crimp	Brass	Crimp	50 Ohms	IP65 - Dust Tight Water Resistant
