725-032 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 32POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Pitch	Pitch	Number of Rows [custom]	Color	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Read Out	Gender	Mounting Type	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Rows

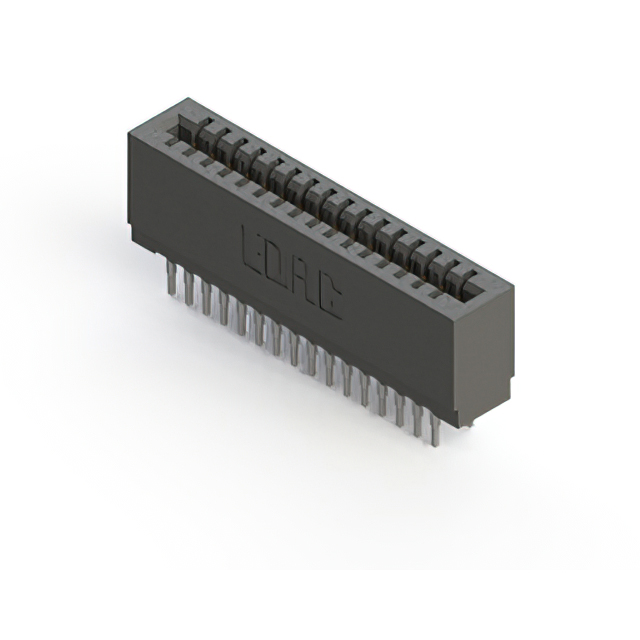

EDAC Inc. 725-032-540-201	Polyester Thermoplastic	2	Copper Alloy	0.1 "	2.54 mm	2	Black	16	30 Áin	0.76 Ám	Non Specified - Dual Edge	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Dual	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 725-032-525-101	Polyester Thermoplastic		Copper Alloy	0.1 "	2.54 mm		Black	32	30 Áin	0.76 Ám	Non Specified - Single Edge	Press-Fit	-40 C	105 ░C	Cantilever	Single	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

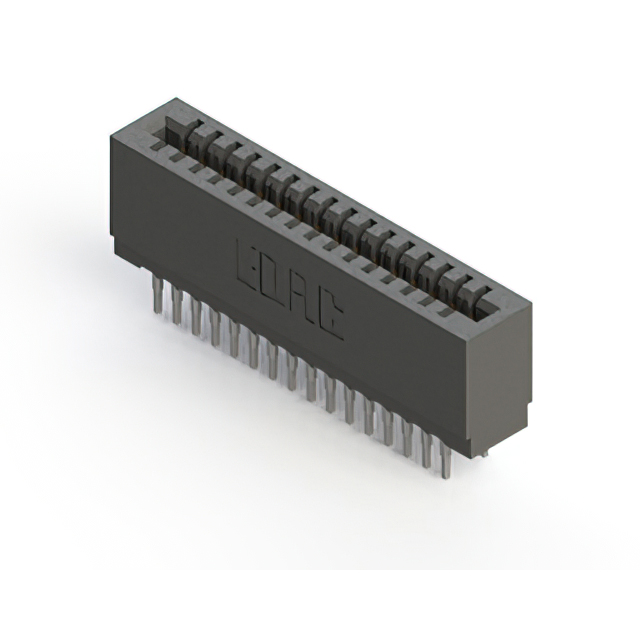

EDAC Inc. 725-032-522-201	Polyester Thermoplastic	2	Copper Alloy	0.1 "	2.54 mm	2	Black	16	30 Áin	0.76 Ám	Non Specified - Dual Edge	Press-Fit	-40 C	105 ░C	Cantilever	Dual	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 725-032-520-201	Polyester Thermoplastic	2	Copper Alloy	0.1 "	2.54 mm	2	Black	16	30 Áin	0.76 Ám	Non Specified - Dual Edge	Press-Fit	-40 C	105 ░C	Cantilever	Dual	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 725-032-545-201	Polyester Thermoplastic	2	Copper Alloy	0.1 "	2.54 mm	2	Black	16	30 Áin	0.76 Ám	Non Specified - Dual Edge	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Dual	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

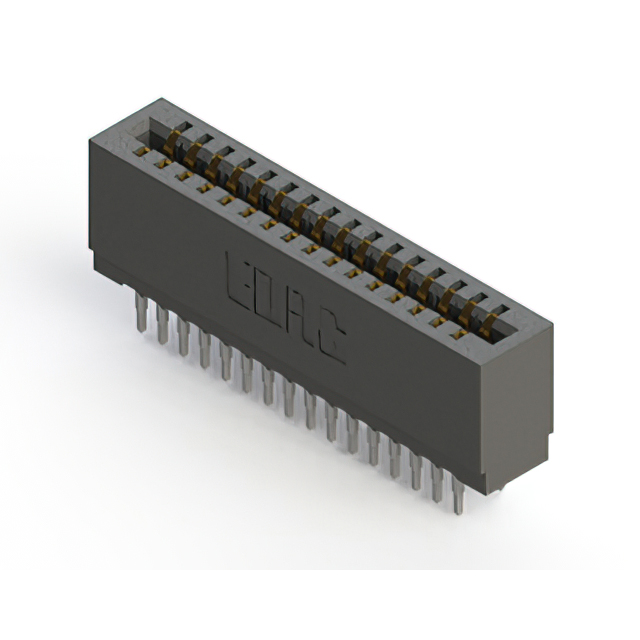

EDAC Inc. 725-032-560-201	Polyester Thermoplastic	2	Copper Alloy	0.1 "	2.54 mm	2	Black	16	30 Áin	0.76 Ám	Non Specified - Dual Edge	Press-Fit	-40 C	105 ░C	Cantilever Make Before Break	Dual	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 725-032-540-101	Polyester Thermoplastic		Copper Alloy	0.1 "	2.54 mm		Black	32	30 Áin	0.76 Ám	Non Specified - Single Edge	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Single	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 725-032-520-101	Polyester Thermoplastic		Copper Alloy	0.1 "	2.54 mm		Black	32	30 Áin	0.76 Ám	Non Specified - Single Edge	Press-Fit	-40 C	105 ░C	Cantilever	Single	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

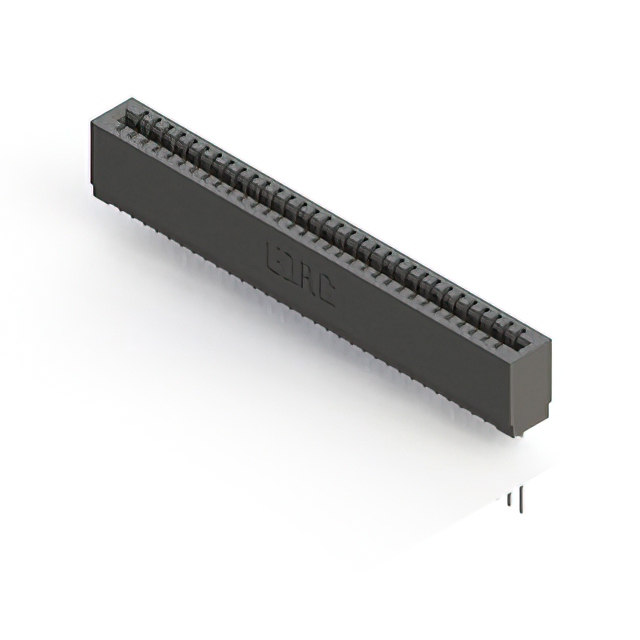

EDAC Inc. 725-032-541-101	Polyester Thermoplastic		Copper Alloy	0.1 "	2.54 mm		Black	32	30 Áin	0.76 Ám	Non Specified - Single Edge	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Single	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 725-032-545-101	Polyester Thermoplastic		Copper Alloy	0.1 "	2.54 mm		Black	32	30 Áin	0.76 Ám	Non Specified - Single Edge	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Single	Female	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
