1971032 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS 6POS HEADER ASSEMBLY FOR GIC 2.0 EV

Part	Applications	Mounting Type	Shrouding	Features	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Material	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Contact Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Style	Number of Rows	Contact Shape	Connector Type	Current Rating (Amps)	Insulation Color	Note	Pitch [x]	Pitch [x]	Color	Contact Termination

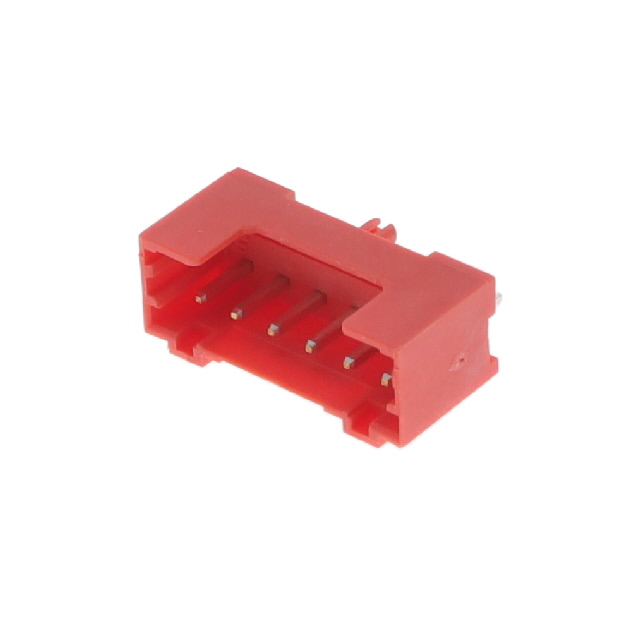

TE Connectivity AMP Connectors 1-1971032-6	General Purpose	Through Hole	Shrouded - 4 Wall	Board Lock	UL94 V-0	-30 ░C	105 ░C	Solder	Brass	2.6 mm	0.102 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Holder	All	0.256 in	6.5 mm	Tin	6	Male Pin	50 V	0.079 "	2 mm	Board to Cable/Wire	1	Square	Header	Varies by Wire Gauge	Red

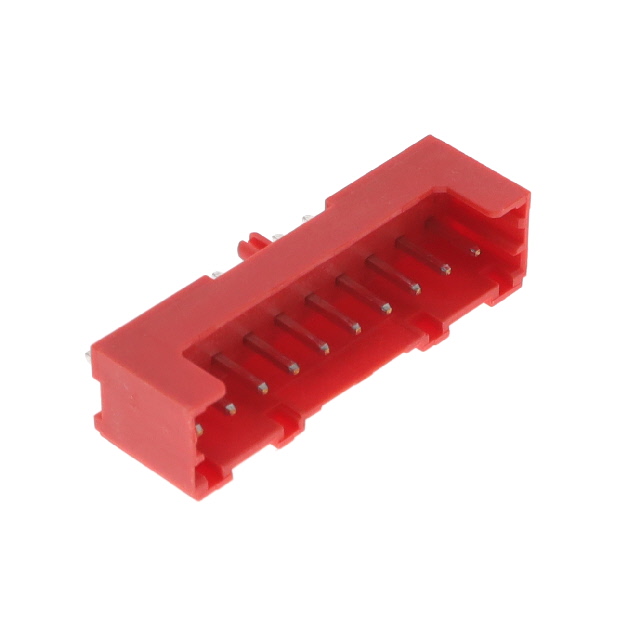

TE Connectivity AMP Connectors 1-1971032-1	General Purpose	Through Hole	Shrouded - 4 Wall	Board Lock	UL94 V-0	-30 ░C	105 ░C	Solder	Brass	2.6 mm	0.102 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Holder	All	0.256 in	6.5 mm	Tin	10	Male Pin	50 V	0.079 "	2 mm	Board to Cable/Wire	1	Square	Header	Varies by Wire Gauge	Red
TE Connectivity AMP Connectors 3-1971032-6	General Purpose	Through Hole	Shrouded - 4 Wall	Board Lock	UL94 V-0	-40 C	105 ░C	Solder	Brass	2.6 mm	0.102 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Latch Holder	All	0.256 in	6.5 mm	Tin	6	Male Pin	50 VAC	0.079 "	2 mm	Board to Cable/Wire	1	Square	Header	Varies by Wire Gauge	Yellow
TE Connectivity AMP Connectors 1-1971032-7		Free Hanging (In-Line)											Latch Holder					7	Female Socket					1		Plug			Contacts Not Included	0.079 in	2 mm	Red	Crimp
